CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Updating Firmware MN-CDD562AL564A/L
5–2
See Figure 5-1. A summary of using the rear panel data interfaces with the CDD-56xAL firmware update
process follows the figure.

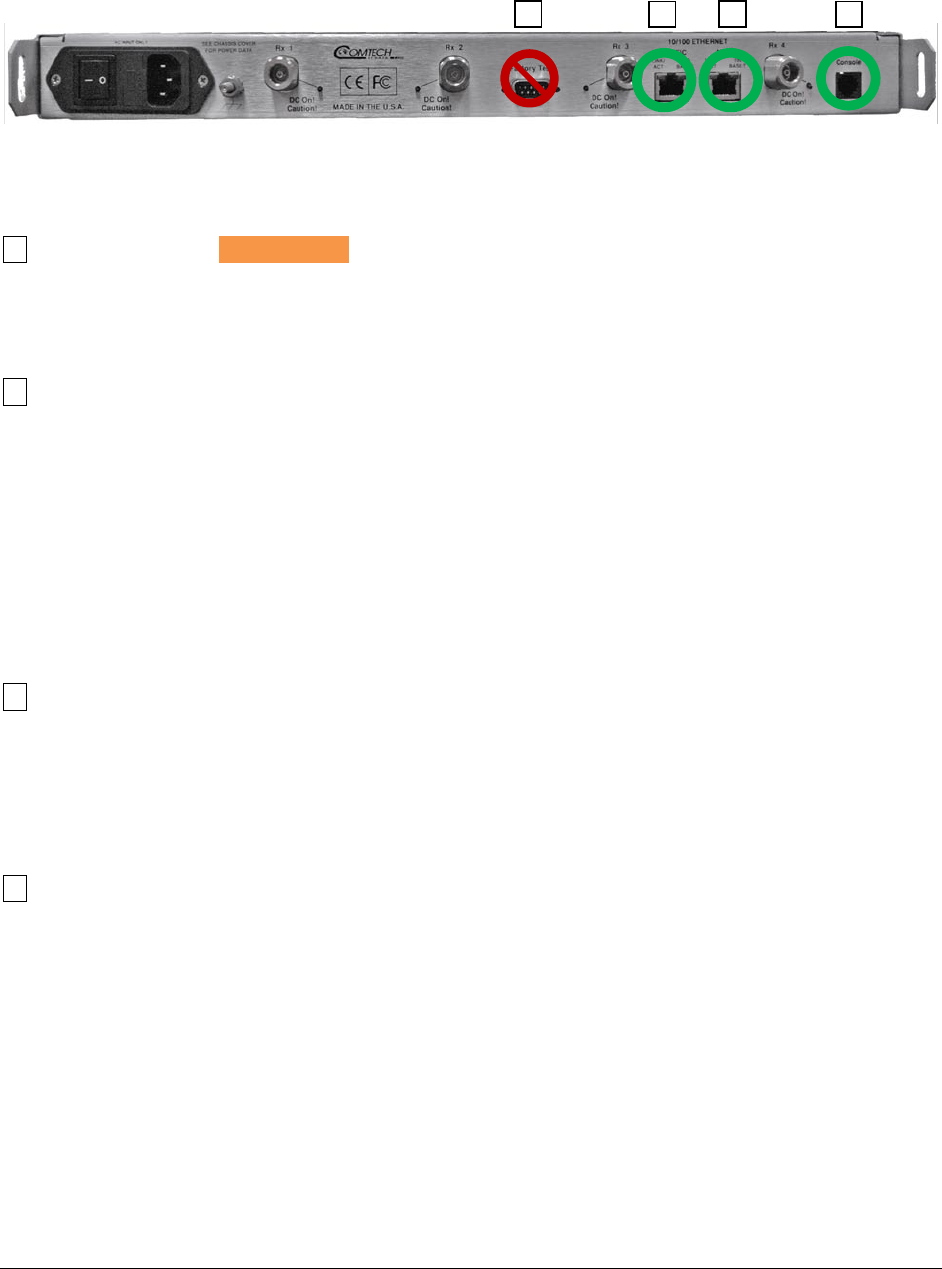

Figure 5-1. CDD-564A/L Rear Panel Connections to User PC
Table 5-1. Rear Panel Connections to User PC
1 Factory Test DO NOT USE
• This DB 9M (Type D 9 pin male) connector is not a standard EIA-232 interface. DO NOT USE.
• This is for Factory Test use only, and is not intended for customer use. Contact CEFD Product
Support before you try to connect any equipment to this interface.
2 10/100 Ethernet
• BaseT Ethernet port, RJ-45 8-pin modular jack
• Cable:
o CAT5, user-supplied to an available Ethernet port, via hub or switch or direct connection
• Uses:
o Ethernet traffic
o Management of IP Module functions via SNMP/Telnet/ HTTP
o Updating IP Module firmware
3 10/100 M&C Ethernet
• Cable:
o CAT5, user-supplied to an available Ethernet port, via hub or switch or direct connection
• Uses:
o Used when Dedicated Management Port is enabled
4 Console
• Async-Serial EIA-232 DCE port, RJ-11 6-pin modular jack
• Cable:
o Use the provided adapter cable to connect to an available 9-pin serial port.
• Software:
o A user-supplied terminal emulator program such as HyperTerminal or Tera Term is used
for management of demodulator and IP Module functions.
• Uses:
o IP Module Command Line Interface (CLI)
1
2
4
3
