CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Telnet and CLI Operation MN-CDD562AL564AL
9–20
Receive HDLC Channel Addresses (Per Demod), keystroke: H
• Opens the Receive HDLC Channel Addresses (Per Demod) screen.
• See Section 9.2.2.2.2.1

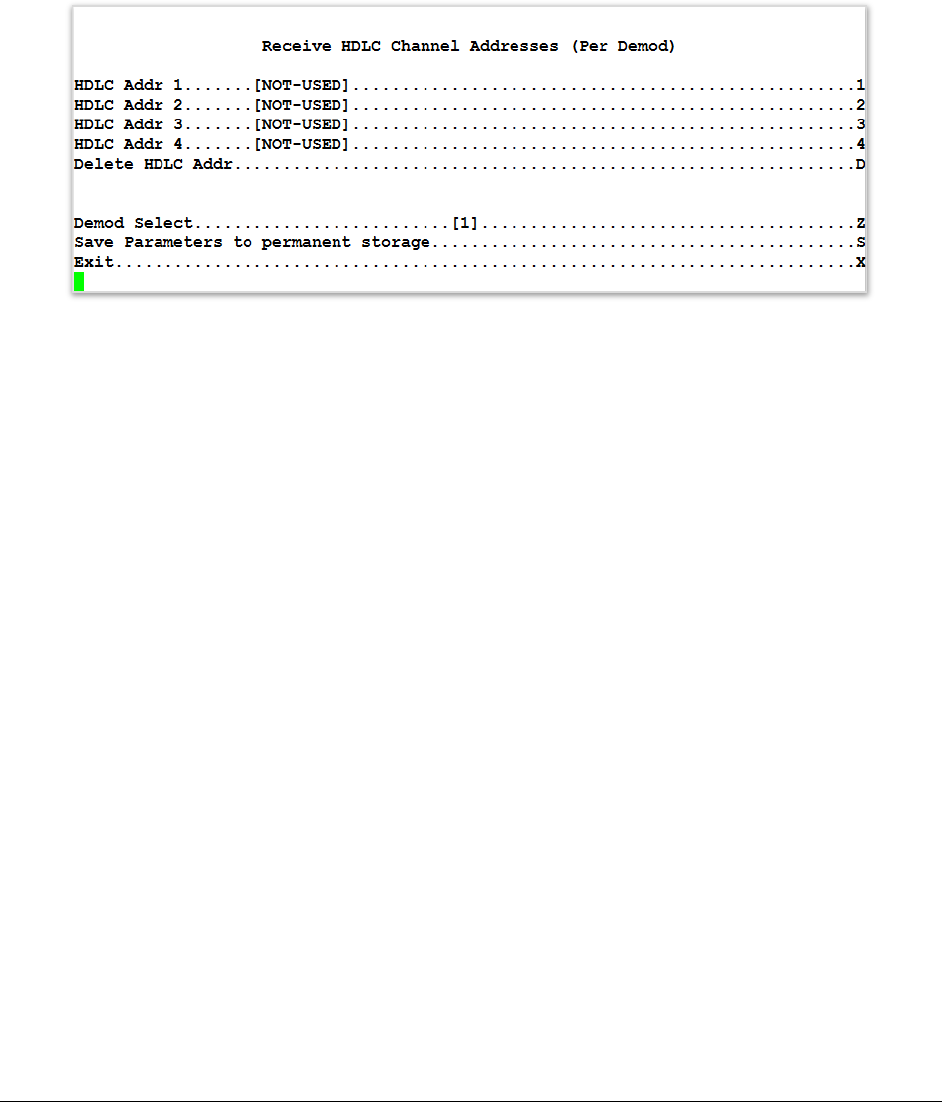

9.2.2.2.2.1 Receive HDLC Addresses (Per Demod) screen
Go to the Receive HDLC Addresses (Per Demod) screen from the Satellite/HDLC Interface screen.
Use this screen to define up to four HDLC addresses per receive channel that can carry user information
on the Satellite Interface. You can use it to delete an HDLC address as well.
• The CDD-564A/L has four Receive channels;
• The CDD-562AL has two Receive channels.
HDLC Addr 1 through HDLC Addr 4, keystroke: 1 through 4
• For HDLC addresses in hex <1 - 7FFE, enter = 0001>
• Point-To-Point Mode: HDLC addresses are not used in this mode.
• Small Network Mode (up to 254 addresses) - The user is limited to valid addresses between the
values of 0x01 and 0xFE.
• Large Network Mode (up to 32766 addresses) - The user is limited to valid addresses between the
values of 0x0001 and 0x7FFE.
Delete HDLC Addr, keystroke: D
• Select and delete an HDLC address entry
