CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
HTTP (Web Server) Interface MN-CDD562AL564AL
10–27
Multicast Options
Select the applicable option:
• N/A
• Forward
• Filter
When finished, click Add Entry to save the entry to the Route Table.
Delete R oute
Use this page section to delete a route from the Route Table.
Enter Route Index to Delete
Enter the Index number for the Route to be deleted, then click Delete Entry to delete the entry from the
Route Table.

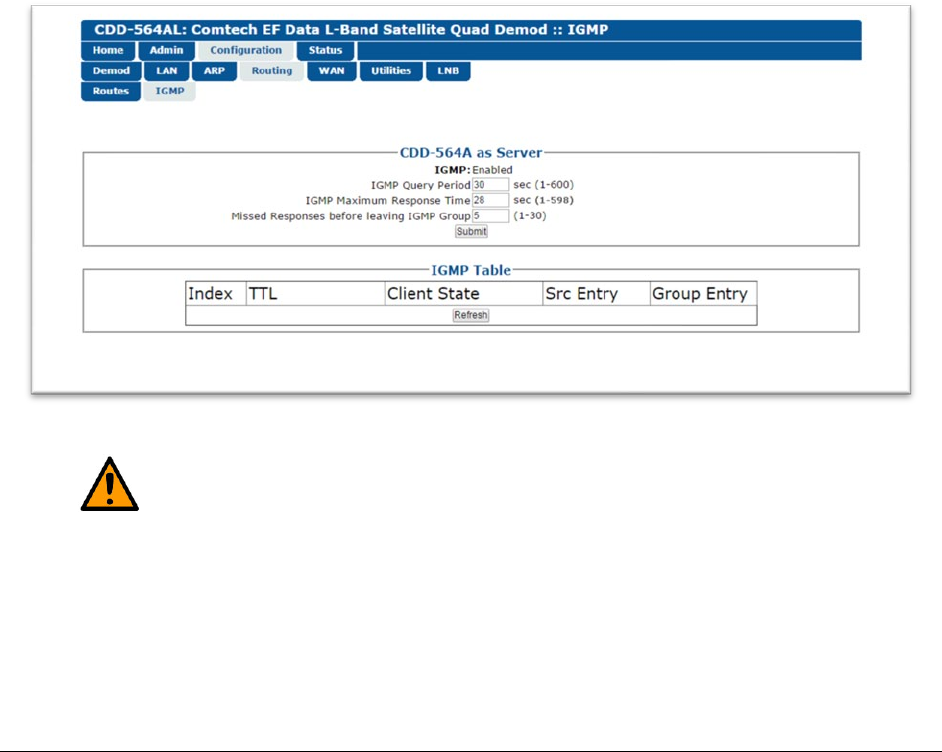

10.5.5 Configuration | Routing | IGMP
Use this page to set the Internet Group Management Protocol (IGMP) configuration parameters.
CAUTION
If you do not save these parameter changes to permanent storage, they will be lost
when the unit is reset or loses power. To save these changes to permanent storage,
go to the
Admin | Save
page and click
Save PaP Parameters
.
