CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Rear Panel Connections MN-CDD562AL564AL
3–1
Chapter 3. REAR PANEL
CONNECTOR PINOUTS
3.1 CDD-56xA/L Rear Panels Overview

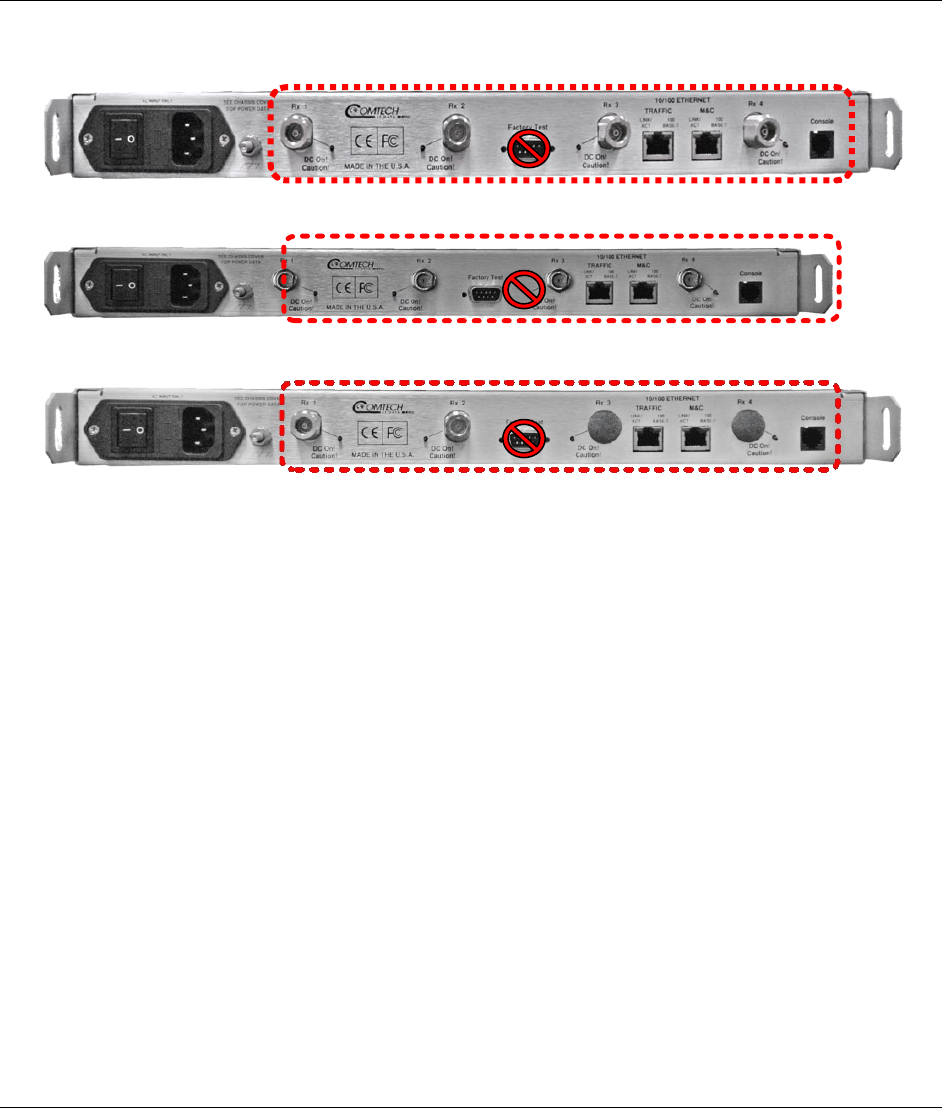

CDD-564AL Quad Demodulator (L-Band)
CDD-564A Quad Demodulator (IF Band)
CDD-562AL Demodulator (L-Band)
Figure 3-1. CDD-56xA/L Rear Panel Views
Use the rear panel connectors for all external connections between the unit and other equipment. See
Figure 3-1 and Table 3-1.
