CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
HTTP (Web Server) Interface MN-CDD562AL564AL
10–35
10.6 Status pages
10.6.1 Status | Demod Status
Use this page to see read-only status data for the selected demodulator.

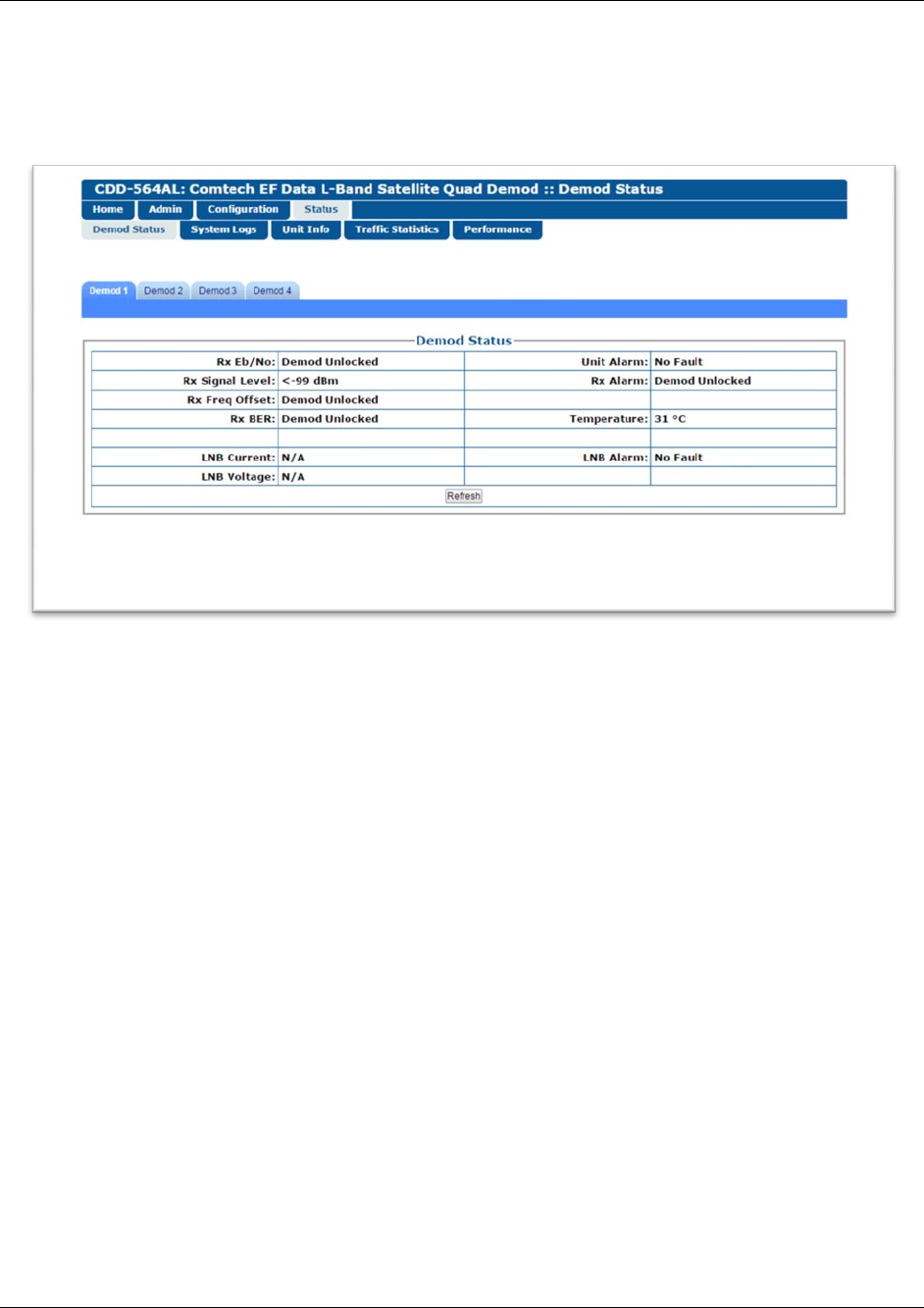

Figure 10-12. Status | Demod Status page
Demod S tatus
• Rx Eb/No
• Rx Signal Level
• Rx Freq Offset
• Rx BER
• LNB Current – available only for L-Band Demodulators
• LNB Voltage – available only for L-Band Demodulators
• Unit Alarm
• Rx Alarm
• Temperature
• LNB Alarm – available only for L-Band Demodulators
Click Refresh to show the most recent status.
