CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Introduction MN-CDD562AL/564AL
1–11

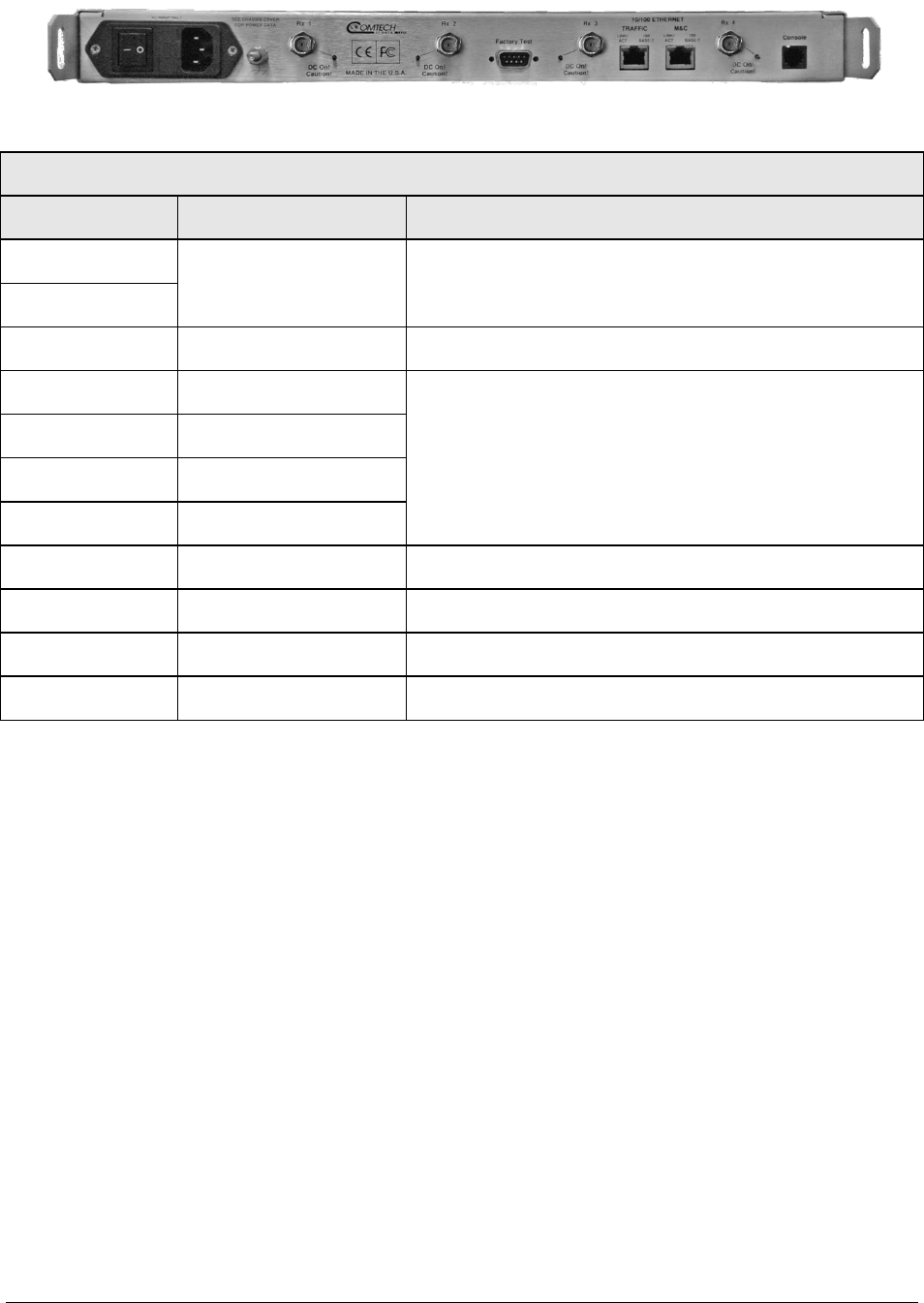

Figure 1-10. CDD-564A Rear Panel View
CDD-564A (IF)
Name Type Function
AC
Chassis power
DC (Optional)
Ground #10-32 stud Common Chassis Ground
Rx 1 BNC female
IF Input
Rx 2 BNC female
Rx 3 BNC female
Rx 4 BNC female
Factory Test 9-pin Type D male Remote Interface (EIA-232) for Factory Test
Traffic RJ-45 female Ethernet Traffic
M&C RJ-45 female M&C Port
Console RJ-11 female Async Serial Console Port
