CDD-562AL/56xA/L Multi-Channel Demodulator Revision 0
Dedicated Management Port MN-CDD562AL56xAL
C–5
C.4.2.1 Steps to set the Traffic IP Address(es)
See Figure C-5:
1. From the CLI Main Menu, type I to go to the Interface Configuration menu
2. Type
E to go to the Ethernet Configuration menu
3. On the Ethernet Configuration menu, type I or L to set the Management or Traffic IP Addresses, respectively.
4. On the Ethernet Configuration menu, type
M or B to set the Subnet Prefixes. Make sure the Management and
Traffic IP Addresses are not in the same subnet.
5. Type
S to save the changes.

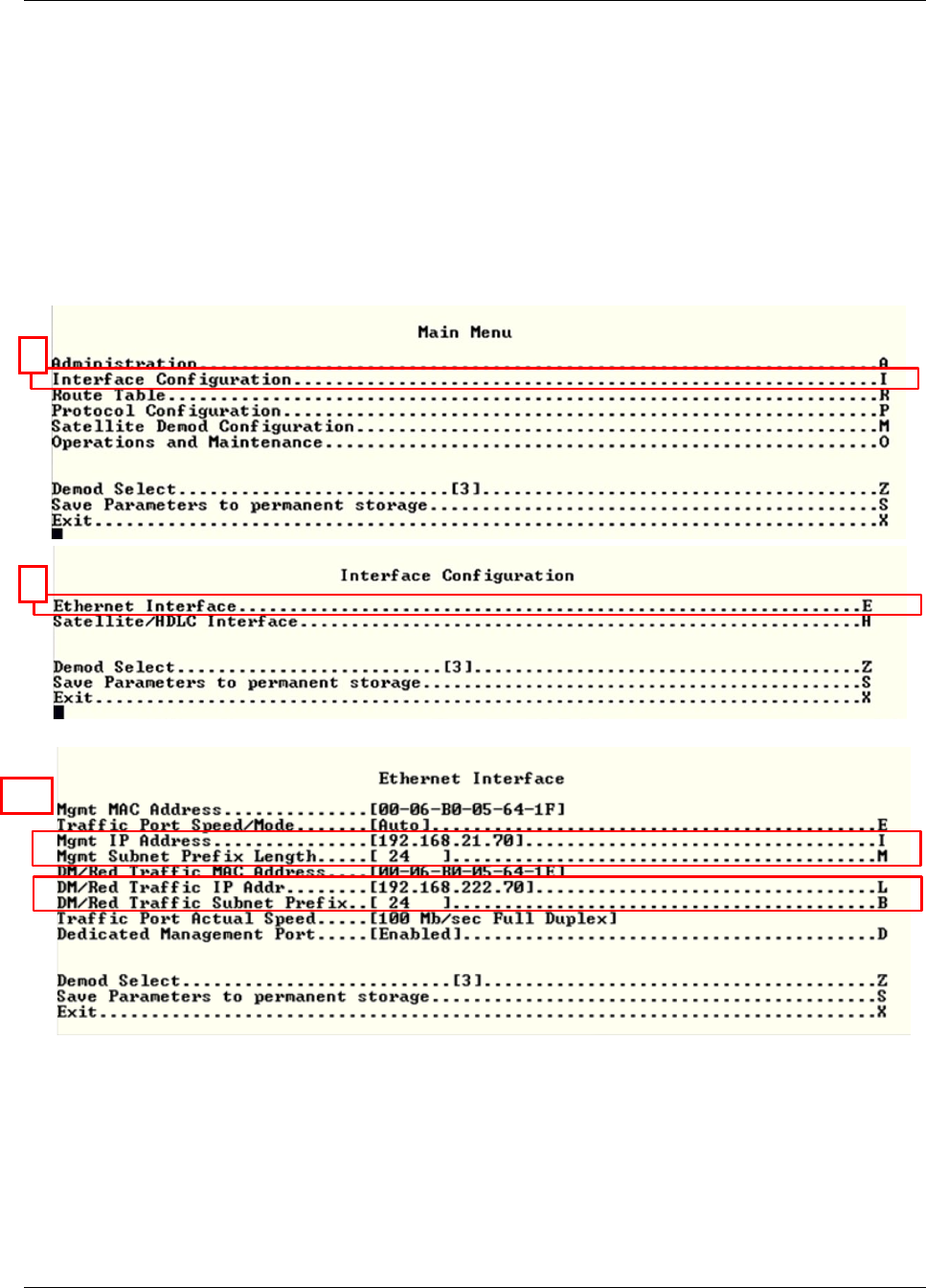

Figure C-5. CDD-564A/L Router Mode – Assign IP Addresses
1
2
3 & 4
