CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Installation and Startup MN-CDD562AL564AL
2–4
2.2.1 Installing the Optional Rear Support Brackets Kit

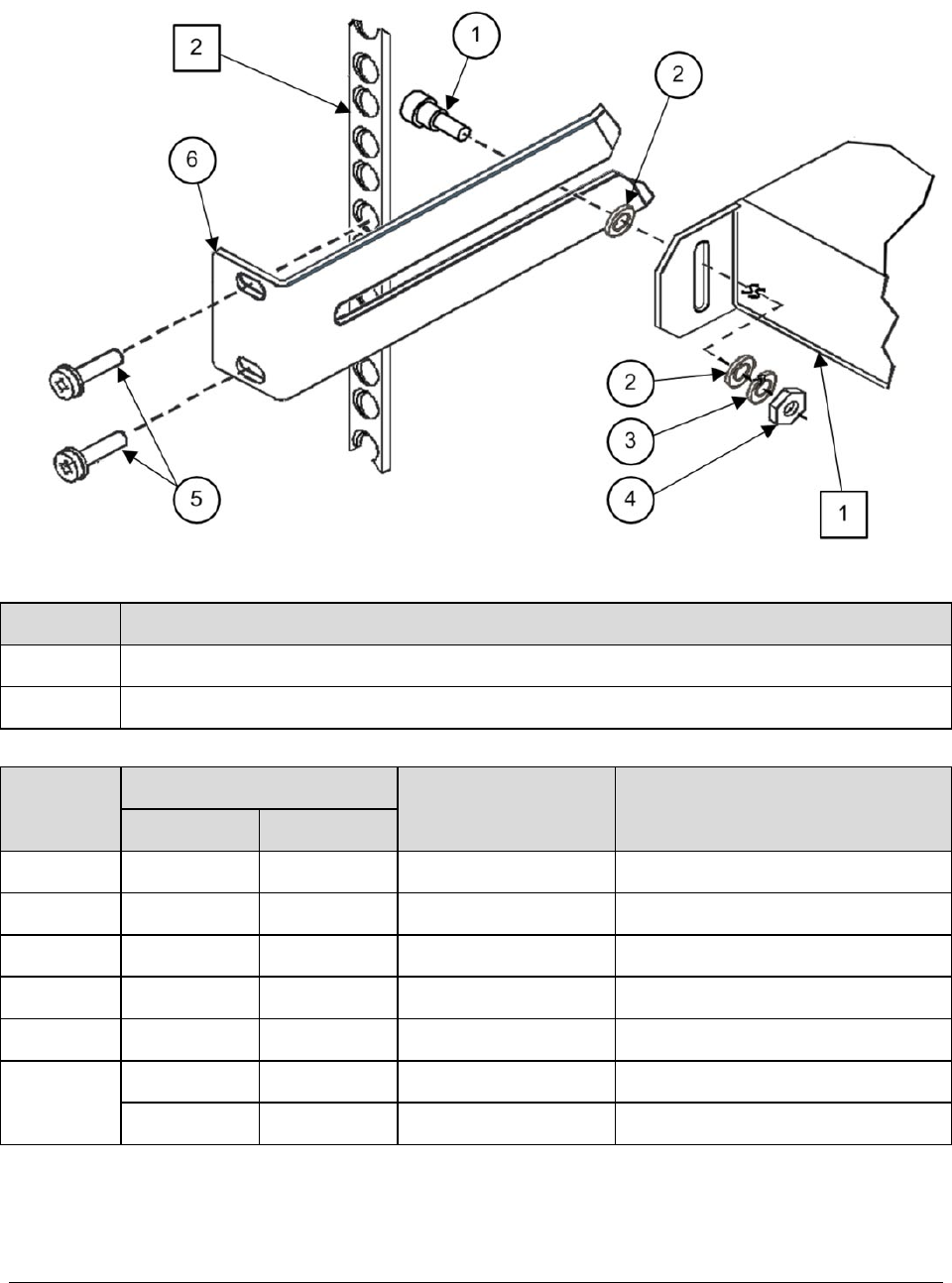

Figure 2-3. Optional Rear Support Brackets Kit Installation
Detail Description
1 Back of Unit
2 Rack Enclosure Threaded Rear Installation Rail (typical)
Item
Kit / Quantity
Part Number Description
KT/6228-2 KT/6228-3
1 2 2 HW/10-32SHLDR Shoulder Screw, #10
2 4 4 HW/10-32FLT Flat Washer, #10
3 2 2 HW/10-32SPLIT Lock Washer, #10
4 2 2 HW/10-32HEXNUT Hex Nut, #10
5 4 4 HW/10-32x1/2RK Bolt, #10, Rear Support Bracket
6
2 – FP/6138-2 Bracket, Rear Support – 4”
– 2 FP/6138-3 Bracket, Rear Support – 10”
