CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
HTTP (Web Server) Interface MN-CDD562AL564AL
10–30
CAUTION
If you do not save these parameter changes to permanent storage, they will be lost
when the unit is reset or loses power. To save these changes to permanent storage,
go to the
Admin | Save
page and click
Save PaP Parameters
.

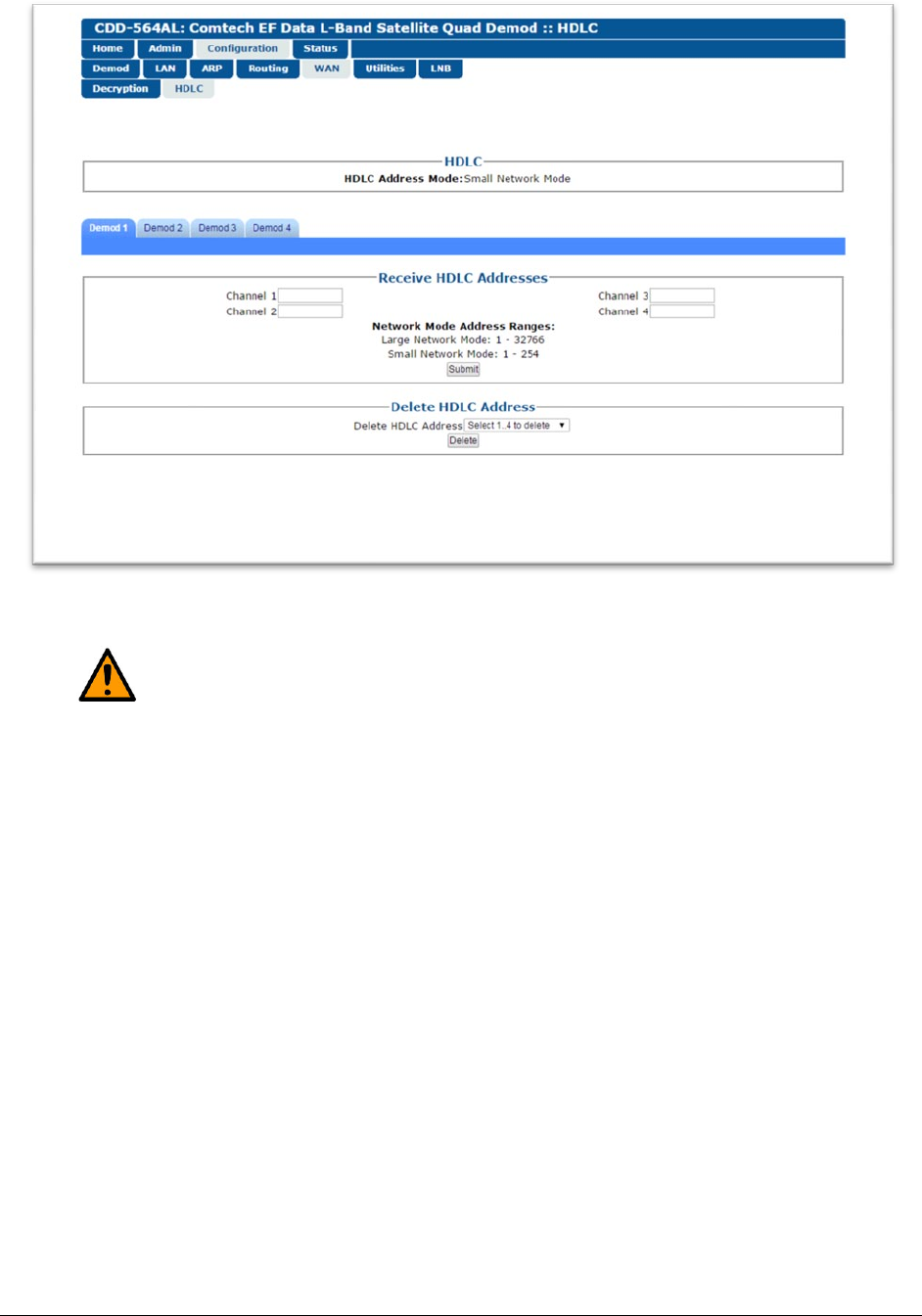

HDLC
HDLC Address Mode
Read-only; shows the active HDLC Address Mode.
• Small Network Mode – The Small Network Mode supports up to 255 remotes, as allowed, using
HDLC addressing. Select the unit to be on independent IP subnets; requires adding static routes to
pass traffic between them.
• Large Network Mode – This mode is similar to Small Network Mode, except that a maximum
of 32,766 remotes are allowed on a single, shared, satellite outbound carrier.
R eceive HDLC Address es
Channels 1 through 4
For each selected demodulator, set an address for the applicable channels.
