CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
HTTP (Web Server) Interface MN-CDD562AL564AL
10–38

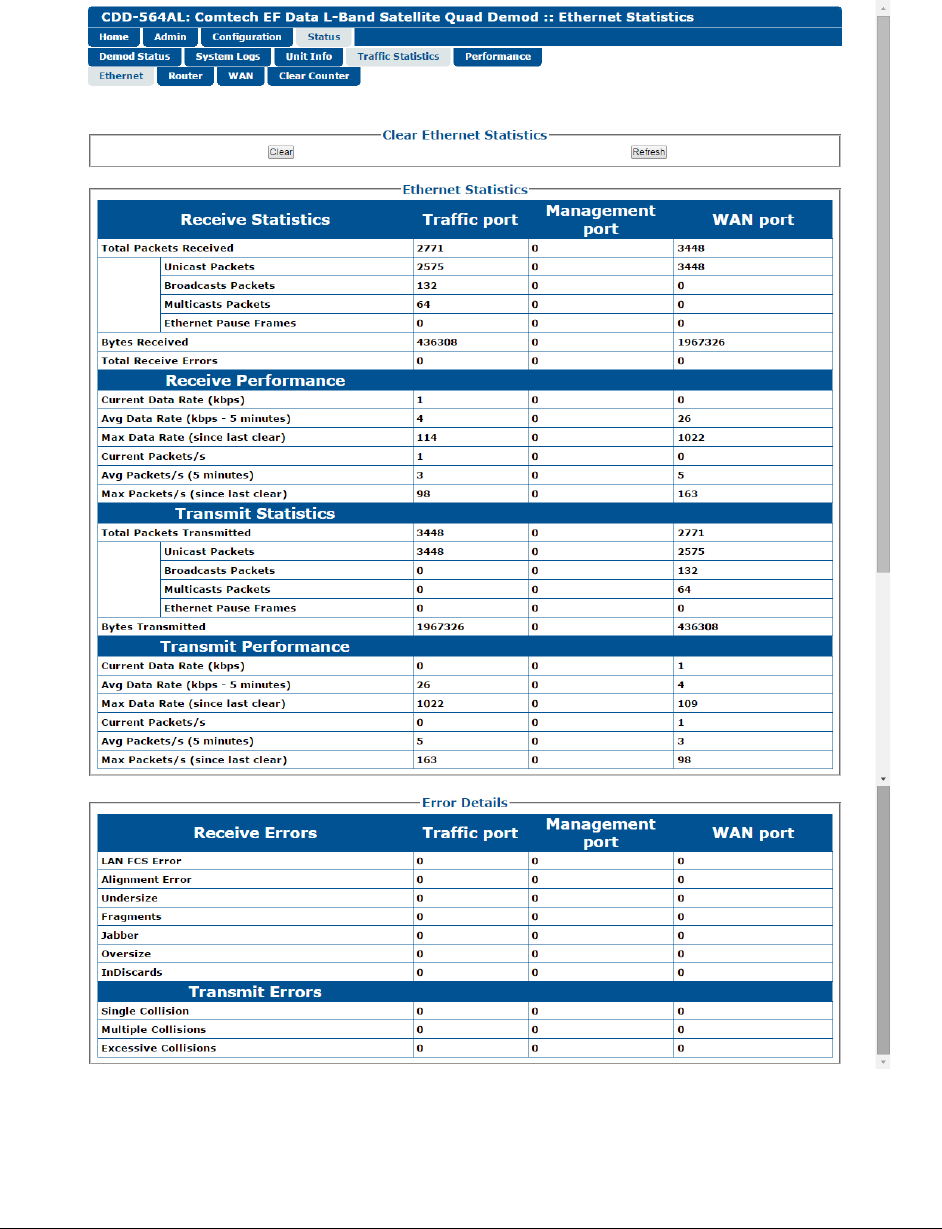

10.6.5 Status | Traffic Statistics | Ethernet
Use this page to see read-only statistics, performance and error data for Receive and Transmit Ethernet
traffic. You can clear or refresh the statistics as well.
Click Refresh to show the most recent data. Click Clear to delete the statistics.
