CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Telnet and CLI Operation MN-CDD562AL564AL
9–21

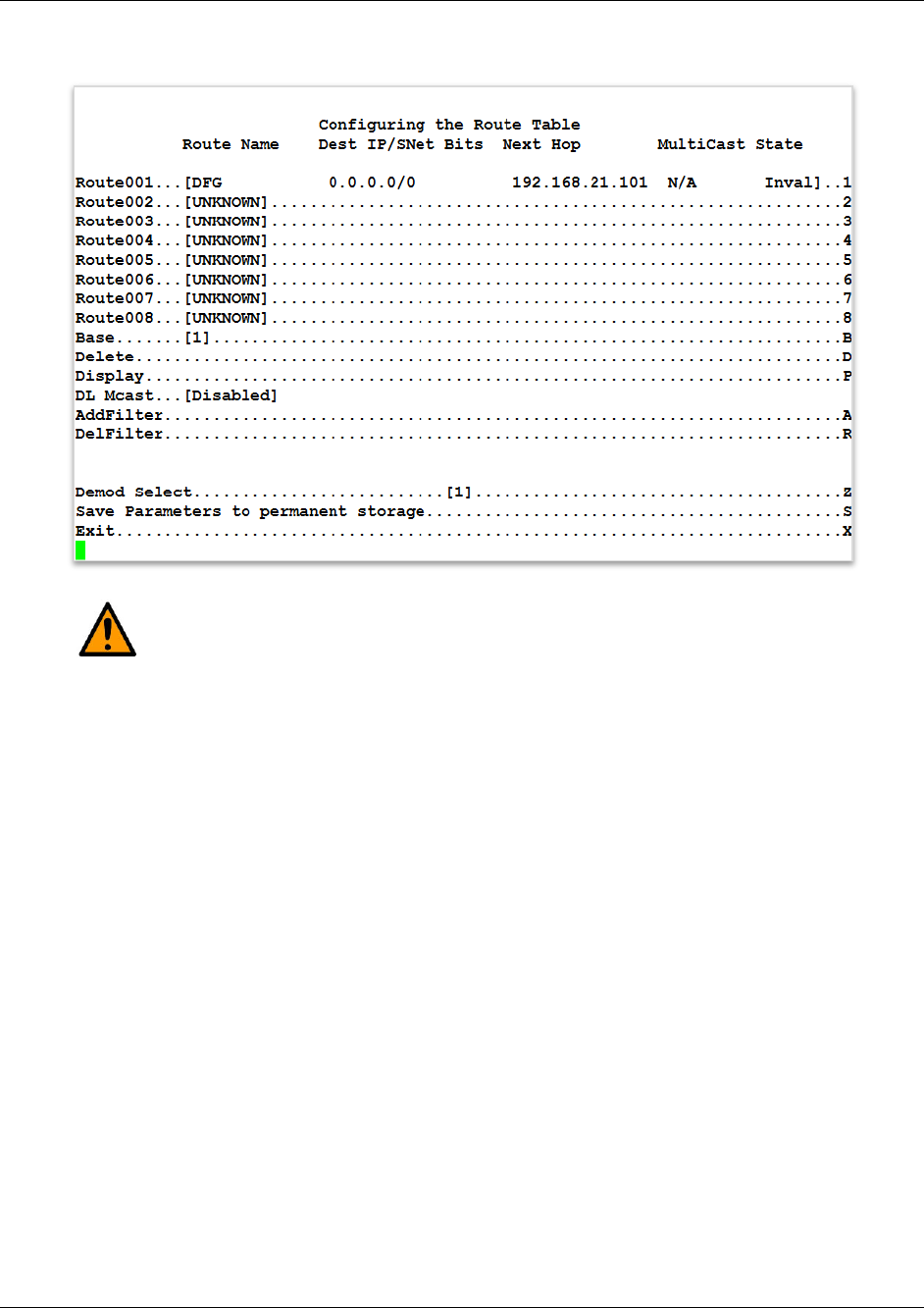

9.2.2.3 Route Table Configuration screen
Go to the Route Table Configuration screen from the Main Menu.
CAUTION
Do not operate a CDM-IP modem satellite link where both IP modems have a Default
Route to the satellite.
About the CAUTION note: if both IP modems had this Route Table entry:
IP Dest Next Hop Type
0.0.0.0/0 Point-to-Point ToSat
Any traffic forwarded by an IP modem that did not have a valid IP host at the remote LAN would then be
resent by the remote IP modem. This traffic would continue to be forwarded until the TTL expired. This
“routing loop” limits the performance of the IP modem by wasting satellite bandwidth.
Route001 through Route008, keystroke: 1 through 8
• The screen shows eight routes at a time.
• System can be configured up to 256 routes.
• Sets routing parameters for the packets the IP Module receives. This is similar to using the 'route
add' command. For each route, you must set:
o A unique route name; the name cannot contain any whitespace
o The destination address of an IP packet of interest
