PCB-4000 1+1 Phase Combiner Revision 2

Updating Firmware MN/PCB4000.IOM

4–6

program such as PKZIP for Windows, WinZip, ZipCentral, etc. (PKZIP for

DOSis not su pporteddue to file naming conventions). ComtechEF Data

doesnotprovidethisutilityprogram.



Some firewalls  do not allow the download of *.exe files. Download the

*.zip file instead, and extract the firmware files from the archive

download with  a  user‐supplied  utility  prog

ram. For detailed information 

on handling archived files, refer to the utility program Help

documentation.



G. Downloadthearchivefiletothetemporaryfolder.



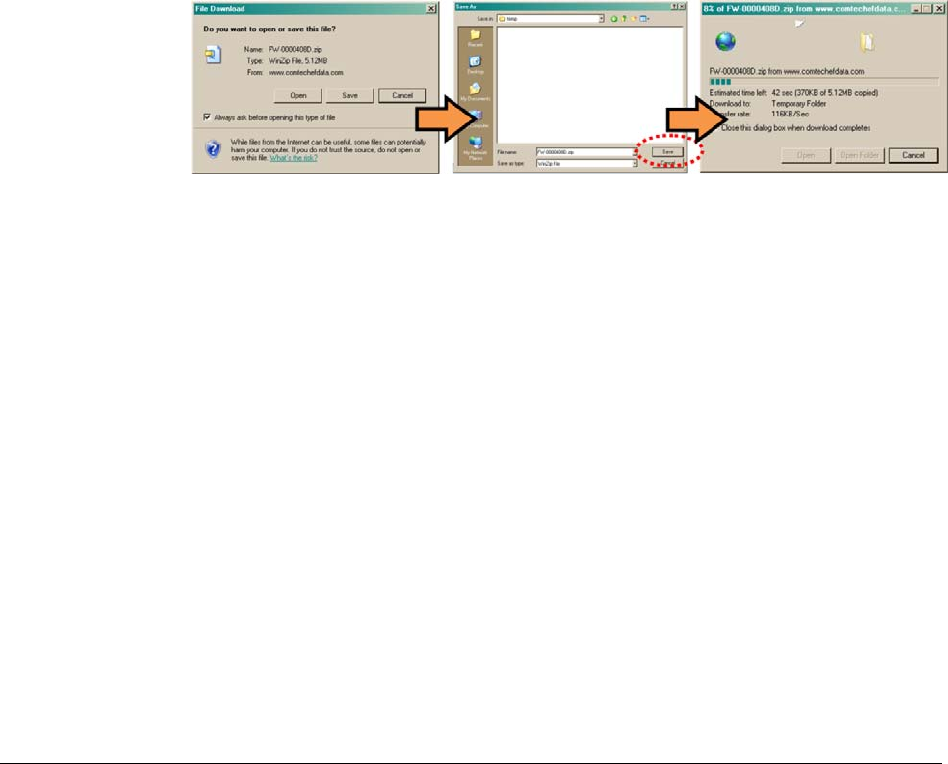

• Once the EXE or ZIP hyperlink is selected the ‘File Download’ window opens and 

promptsselectionof[Op

en]or[Save]:



o Click[Open]toturnoverfileextractiontotheuser‐suppliedutilityprogram.Be

suretoextractthefirmwarefilestothe“temp”foldercreatedearlier.

o Click [Save] to open the ‘Save As’ window. Be sure to select and [Save] the

archive*.

exeor*.zipfiletothe“temp”foldercreatedearlier.



o Otherwise,click[Cancel]toquitandexitthefiledownloadprocess.



2. Next,extractthefirmwarefilesfromthearchivefile.



• (If not already done with File Download > [Open]) Extract the firmware files from the

downloaded*.exeor*.ziparchivefilewiththeuser‐suppliedutili

typrogram:



o Double‐clickonthearchivefilename,andthenfollowthepromptsprovidedbythe

user‐suppliedutilityprogram.Extract,ataminimum,fourfiles:



 ReleaseNotes_vX‐X‐X.pdf – Where “X‐X‐X” denotes the f

irmware version

number.



 fw11411x.CCC – Firmware file, where "x" denotes the firmware revision

letter.



 FLSHCSAT.EXE–CE FDFlashUploadUtilityProgram.



 CCCflash.hlp:FLSHCSATHelpFile.


