PCB-4000 1+1 Phase Combiner Revision 2

Updating Firmware MN/PCB4000.IOM

4–2

4.2 Getting Started: Preparing for the Firmware Download

1. Locateand identifythe PCB‐4000 1+1

Phase Combiner Control Box (PCCB).

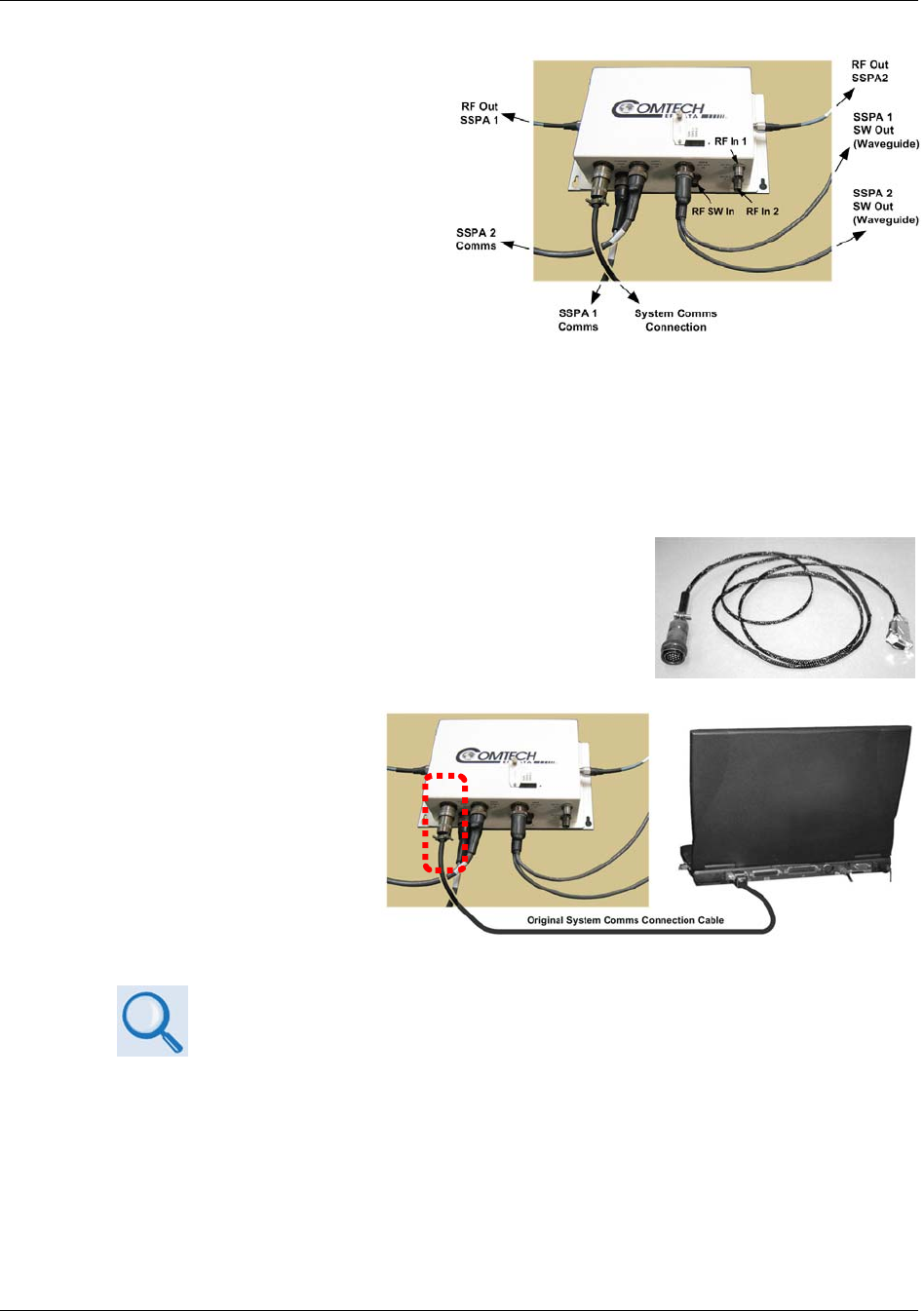

The illustration at right identifies the

key cable connections between the

PCCBtotheothercomponentsinand 

atypical1+1PhaseCombinedSystem.



2. ConnectthePCB‐4000toauser‐suppli edPC.



User‐supplieditemsneeded:



• AM

icrosoftWindows‐basedPC,equippedwithanavailableserialport,andrunninga

terminalemulatorprogram(e.g.,TeraTermorHyperTerminal).



• AserialadaptercableforconnectingthePCtothe

PCB‐4000.Ifneeded,theCA/WR12243‐1System

ProgrammingCableisavailablefromComtechEF

Data.ContactCEFDCusto

merSupportforordering

information.



A. ConnecttheuserPCserial

porttothePCB‐4000

“SYSTEMCOM|J1”port.



B. OnthePC:Opentheterminalemulatorprogram.



RefertoyourterminalemulatorprogramHELPfeatureoruserguidefor

operatingandconfigurationinstructions.

Configuretheutilityprogramserialportcommunicationandterminaldisplayoperation:



• 9600 or 19200 bps (Baud Rate) • 8 Data Bits • 1 Stop Bit

• Parity = NO • Port Flow Control = NONE • Display New line Rx/Tx: CR

• Local Echo = ON
