3.3.1 LED Status Operation
ThePCB‐40001+1PhaseCombinerfeaturesfour
Light‐Emitting Diode (LED)indi cators – three are
operational, with the fourth reserved for future
applications.EachLEDprovidesvisualcues tothe
operational, online, and offline status of the
system.
Figure 3‐4 illustrates the location of the LED
indicators. Located on th
e top of the PCB‐4000
enclosure under a pivoting protective plate, you
mayview theLEDs byfirs t looseningthe captive
screw that keeps the plate in place, and then
swiveling the plate to reveal the LED display
window.
ThebehavioroftheLEDs,astheyappearundervaryingoperationalcondi
tions,isasfollows:
LED Color / Behavior Description
SUM
(LED 1)
Green Phase Combiner has no summary fault.
Red (blinking) A switch fault has occurred.
Red (constant) A Summary Fault has occurred.
SSPA 1
(LED 2)
-or-
SSPA 2
(LED 3)
Phase-Combine
mode (RED=1)
Green (constant) SSPA is unfaulted, unmuted and online.
Orange (constant) SSPA is unfaulted but muted, and online.
Red (blinking) SSPA is faulted and has gone offline.
Red (constant) SSPA is faulted but online.
Non Phase-
Combine mode
(RED=0)
Green (constant) SSPA is unfaulted, unmuted and online.
Green (blinking) SSPA is unfaulted, unmuted and offline.
Orange (constant) SSPA is unfaulted but muted, and online.
Orange (blinking) SSPA is unfaulted but muted, and offline.
Red (constant SSPA is faulted but online.
Red (blinking) SSPA is faulted and has gone offline.
(LED 4) Inoperable (always dark), reserved for future use

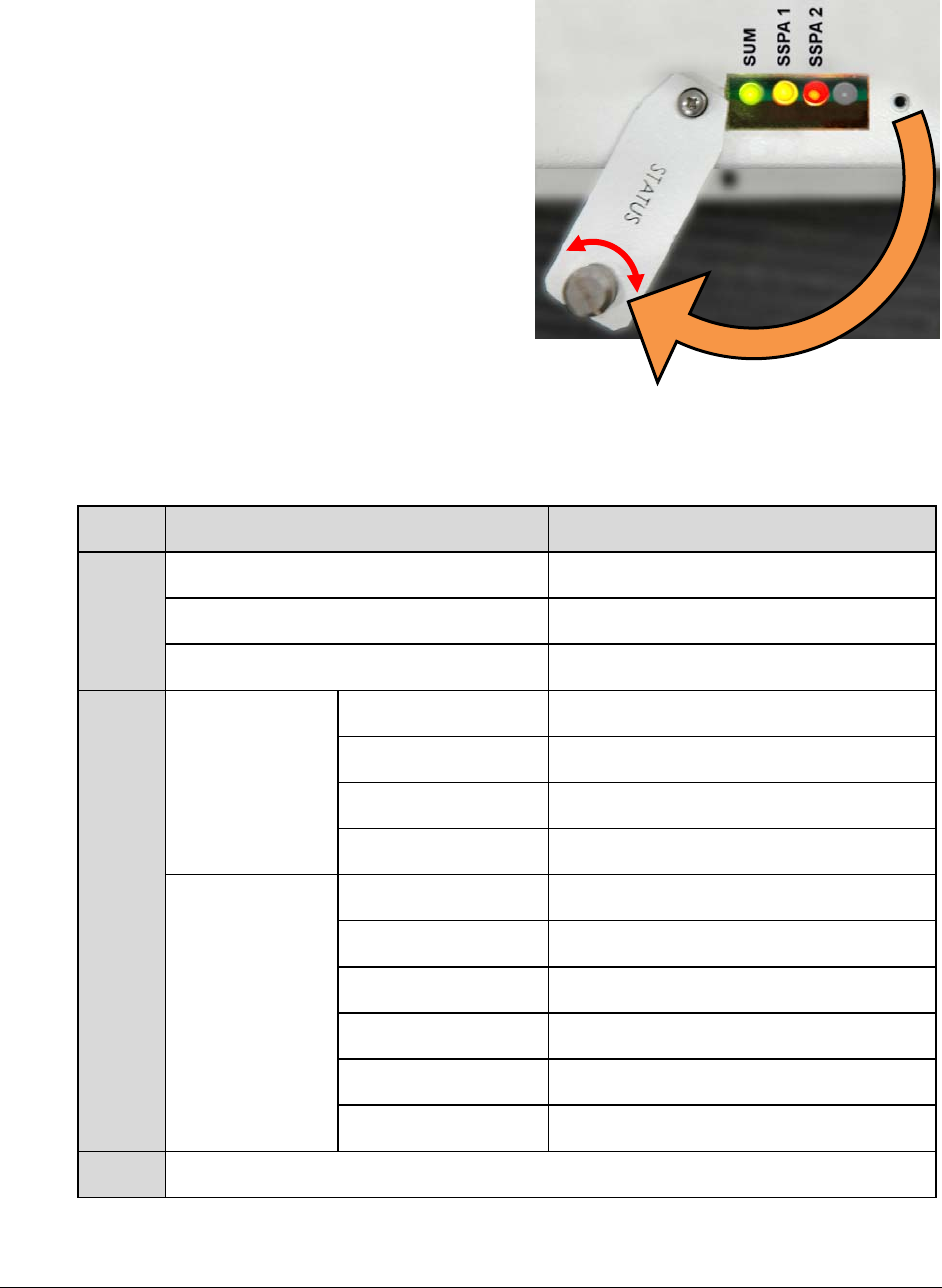

Figure 3-4. PCCB LED Display Window
