SDM-2020 Satellite Demodulator Revision 4

ECL/HSSI Data Interface MN/SDM2020D.IOM

10–10

10.1.4.5 Terrestrial Electrical Characteristics

All signals are balanced, differentially driven, and received at standard 10K/100K ECL

levels. Table 10-6 summarizes the electrical properties of the HSSI interface.

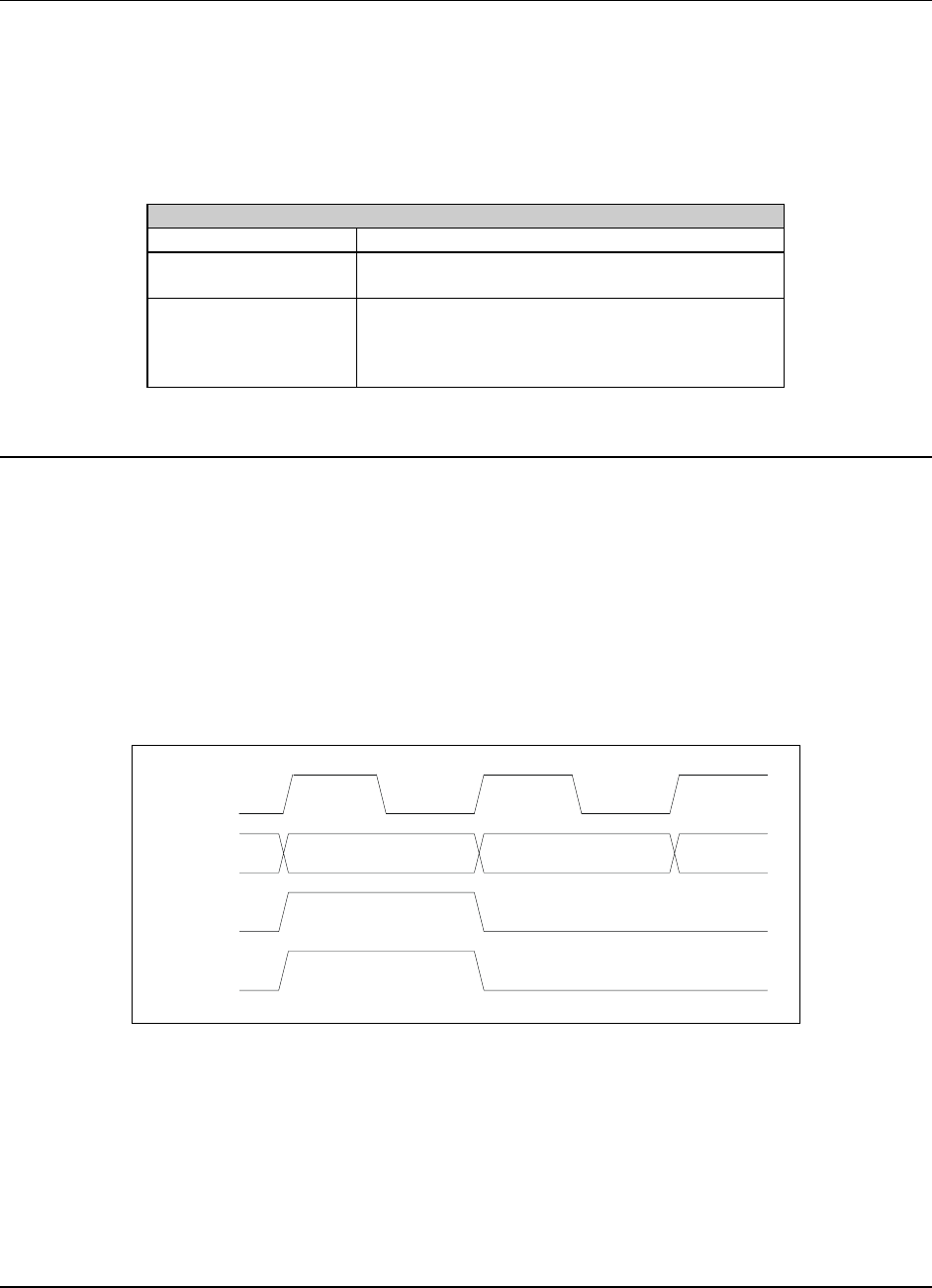

Table 10-6. HSSI General Specifications

General Specifications

Connectors 50-pin mini-D female for EIA-613 (HSSI) data.

Electrical Properties Per EIA-612 (10KH ECL).

TTL/TTL open-collector.

Typical Voltages Levels

Differential voltage: ≥ 590 mV, 110Ω load

Input voltage range: -0.5 to -2.0V

Referenced to receiver common.

10.1.4.6 Terrestrial Timing

The nominal interface timing is as follows:

• Clock is 50% duty cycle

• Data/control signals transition on the rising (low to high) edge of the clock

• Data/control signals are stable on the falling (high to low) edge of the clock

Figure 10-7 shows the nominal interface timing.

CLOCK

DATA

SYNC

DVALID

Figure 10-7. Nominal Interface Timing
