CDM-840 Remote Router Revision 0
Ethernet Management MN-CDM840
5–22
5.4.4.4.6 Configuration | WAN pages
Click the Label or QoS tab to continue.
5.4.4.4.6.1 Configuration | WAN | Label

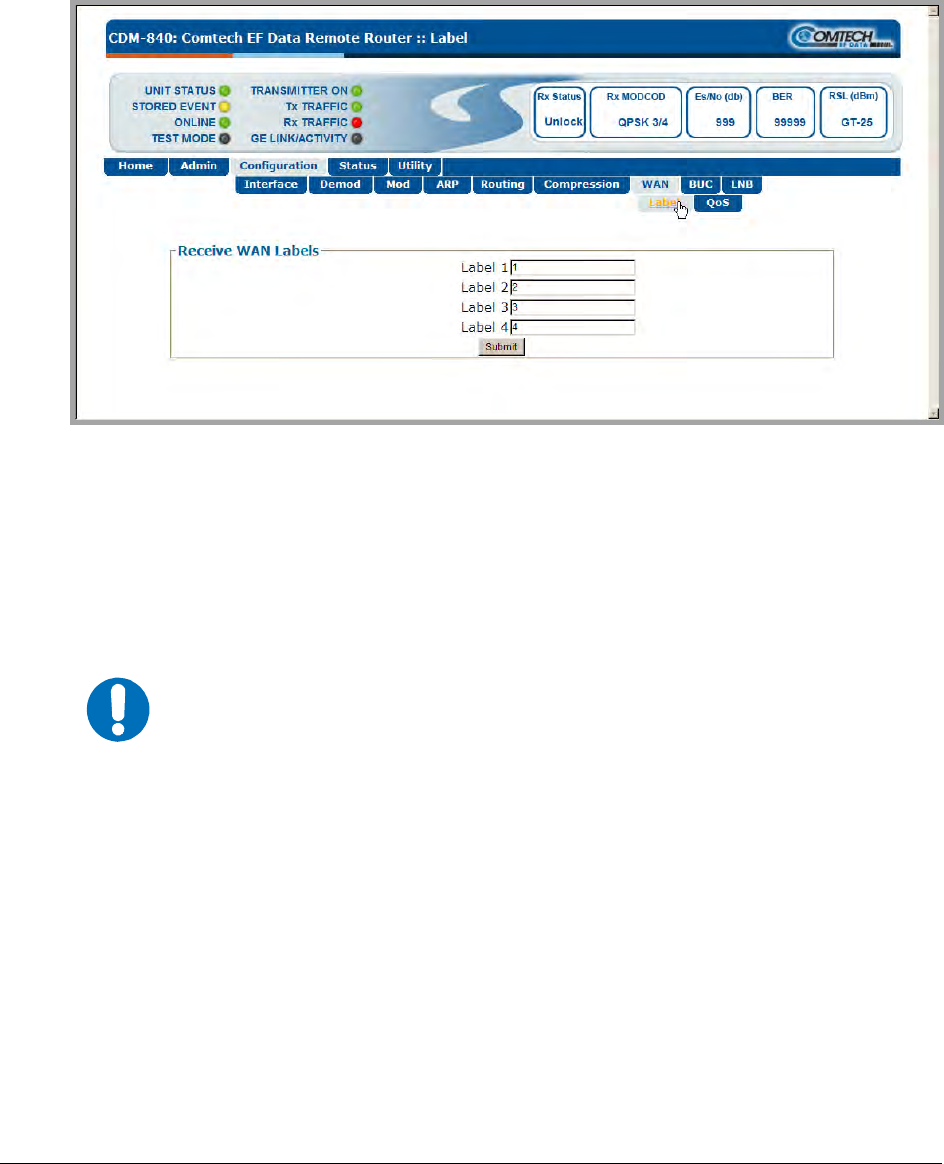

Figure 5-14. Configuration | WAN | Label page
The ‘Configuration | WAN | Label’ page (Figure 5-14) is use
d to assign up to four Generic
Stream Encapsulation (GSE) labels. Each label has a valid range of 1 to 2047.
Receive WAN Labels
Edit the Label 1 through Label 4 text boxes to suit. Once the desired labels have been created,
click [Submit] to save those changes.
IMPORTANT
The assigned Receive WAN Labels must match the WAN Labels assigned in
the CDM-800 Gateway Router’s Route Table. Refer to the CDM-800 Gateway
Router Installation and Operation Manual for the CDM-800’s configuration
information.
