CDM-840 Remote Router Revision 0
Installation MN-CDM840
2–3
The kit is installed as illustrated in Figure 2-1 and per the following procedure:
Step Description
1
Secure the Adapter Plates to each side of the chassis at the rear, using the #10
Flat Head Screws as shown.
2
Secure the #10 Shoulder Screws through the Adapter Plate mounting slots using
the #10 Flat Washers, #10 Split Washers, and #10 Hex Nuts as shown.
3
Install the Rear Support Brackets onto the equipment rack threaded rear
mounting rails, using the #10 Rack Bracket Bolts.
4
Mount the unit into the equipment rack, ensuring that the #10 Shoulder Screws
properly engage into the slots of the Rear Support Brackets.

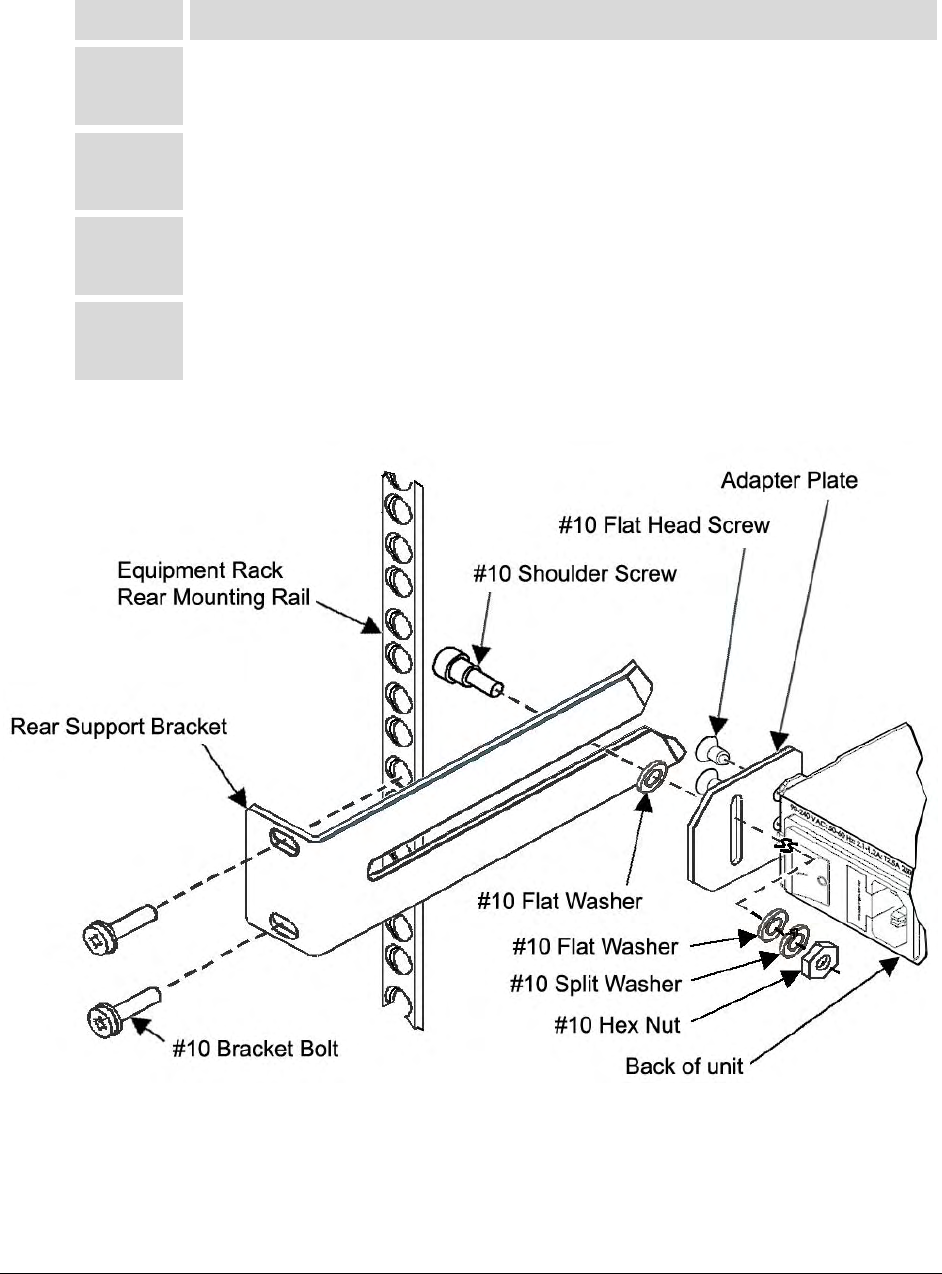

Figure 2-1. Installation of Optional Rear-Mounting Support Bracket Kit
