CDM-840 Remote Router Revision 0
Ethernet Management MN-CDM840
5–12
5.4.4.3.5 Admin | Auto Logout

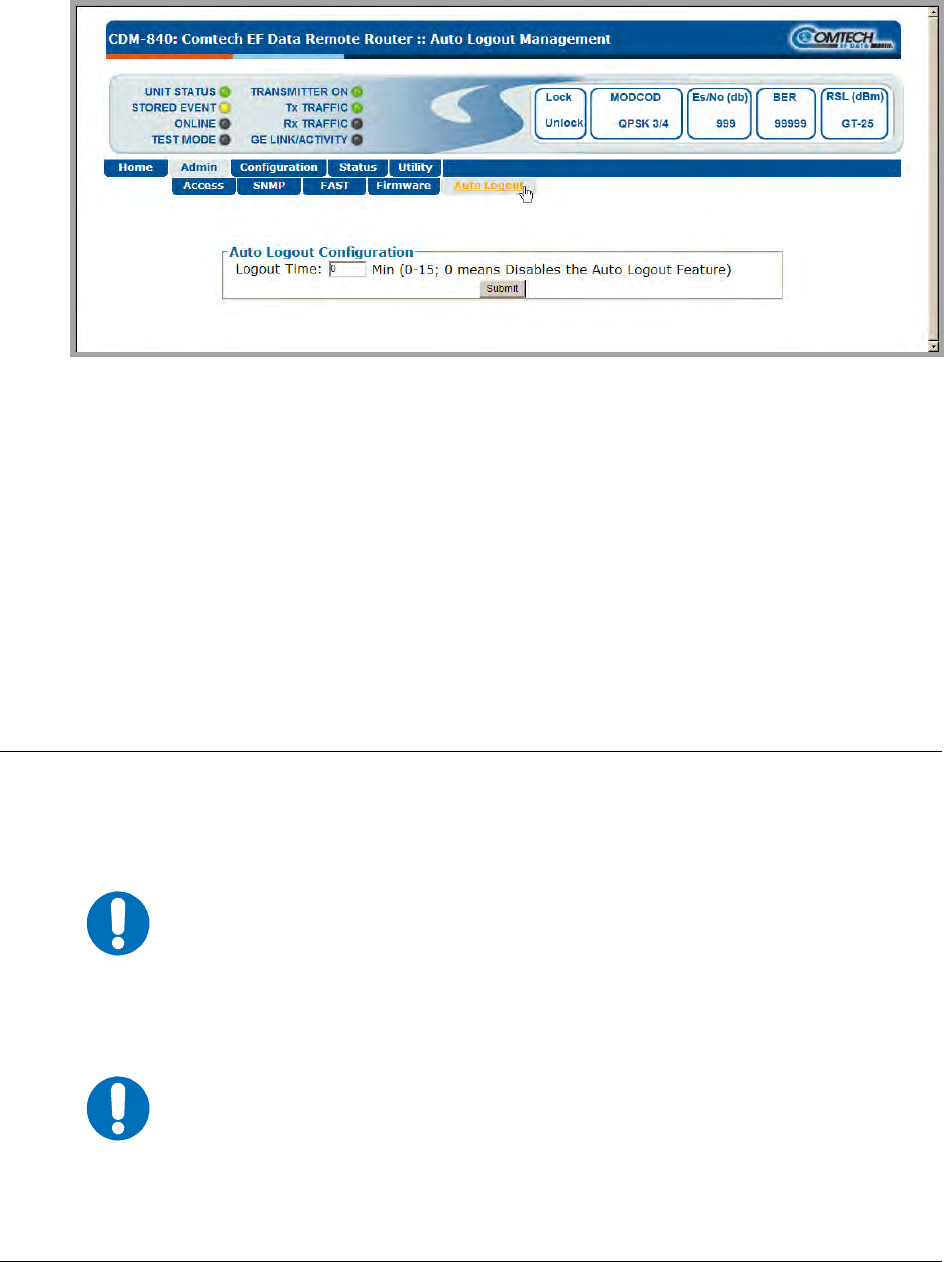

Figure 5-7. Admin | Auto Logout page
The ‘Admin | Auto Logout’ page (Figure 5-7) provides a security measure for safeguarding
access to a previously logged-in unit.
Once configured, the active session will be terminated if the unit i
s allowed to remain idle (i.e.,
when no user activity occurs) for the specified Auto Logout timeframe. A valid user name and
password will then be required to open a new session with the CDM-840 Web Server Interface.
Auto Logout Configuration
To configure the Auto Logout feature, enter a value of 1 – 15 minutes into the Logout Time box.
Entering a value of 0 disables the Auto Logout feature. Once the desired time value has been
entered, click [Submit] to save this change.
5.4.4.4 Configuration Pages
The ‘Configuration’ pages (Figure 5-8 through Figure 5-18) are used to configure all router
parameters. Click the Interface, Demod, Mod, ARP, Routing, WAN , BUC, or LNB tab to
continue.
IMPORTANT
While the Compression tab is selectable, the associated options are not
available in this initial product release. This page is therefore non-functional.
5.4.4.4.1 Configuration | Interface
IMPORTANT
While the E1 tab is selectable, the G.703 E1/T1 interface is not available in this
initial product release. This page is therefore non-functional.
Click the FE Mgt or GE tab to continue.
