CDM-840 Remote Router Revision 0
Rear Panel Connector and Pinouts MN-CDM840
3–3

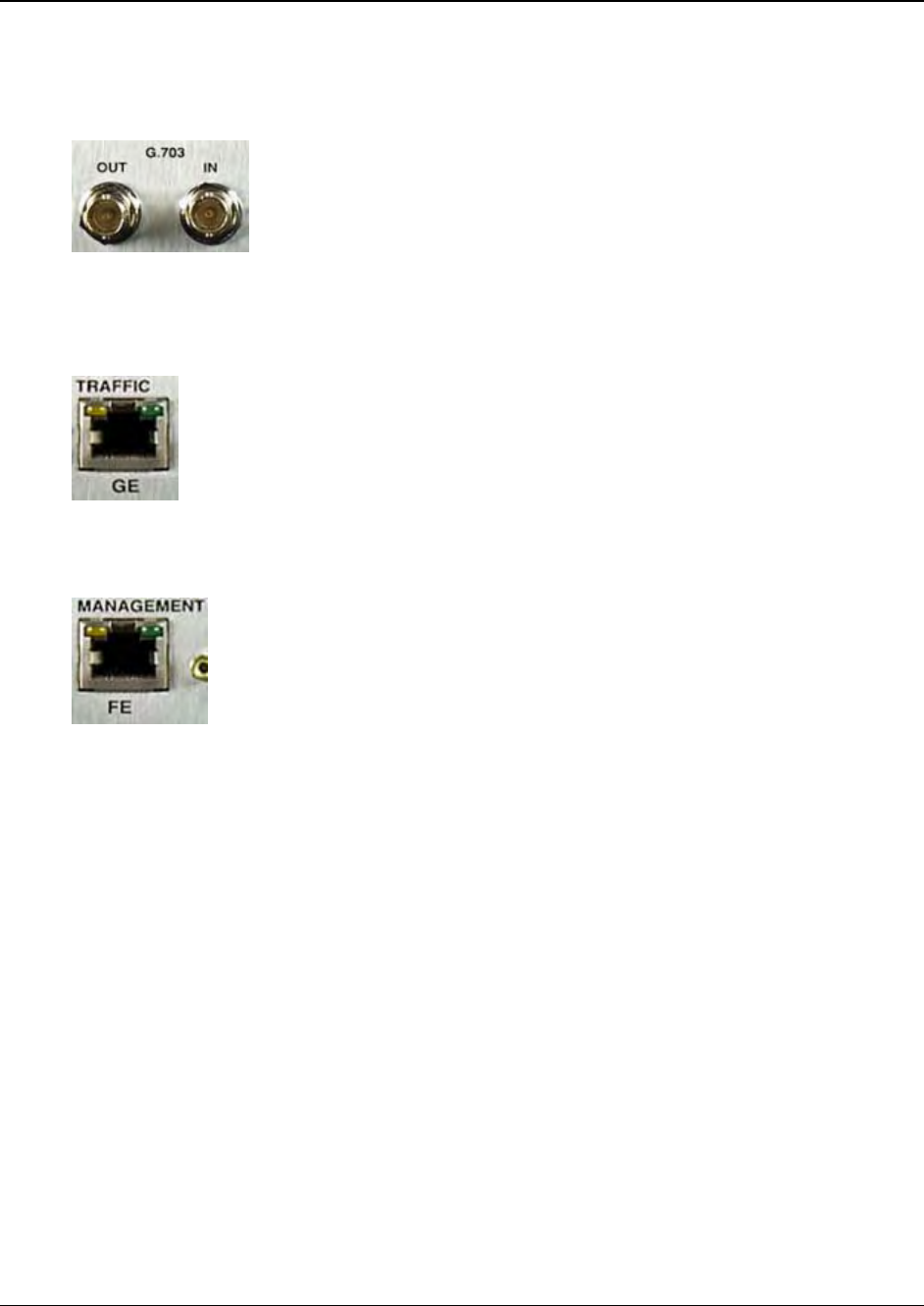

3.3 Terrestrial Data Connections
3.3.1 (FUTURE) G.703 OUT/IN Connectors, BNC
This interface is not operational in the initial product release.
3.3.2 TRAFFIC GE (Gigabit Ethernet) Connector, RJ-45
This is a standard RJ-45 female modular jack, operating at 10/100/1000 Mbps, half
and full duplex, auto-negotiating.
Note: The maximum Ethernet packet size is 1522 bytes (including Ethernet headers
and CRC).
3.3.3 MANAGEMENT FE (Fast Ethernet) Connector, RJ-45
This is a standard RJ-45 female modular jack, operating at 10/100 Mbps, half
and full duplex, auto-negotiating.
Note: The maximum Ethernet packet size is 1522 bytes (including Ethernet
headers and CRC).
