Digital Satellite Terminal System Revision 1

Block Up Converter MN/DST.IOM

3–11

3.6.2 Ku-Band Spar Mount Typical Terrasant

1. KT/11125 KIT, BUC SPAR Mount, Ku-Band RF

-2. KT/9928-1 . Kit, BUC, Mount 1

-3. FP/BR11119-1 . Bracket, BUC Mount 1

-4. FP/BR11120-1 . Bracket, Mounting Plate 2

-5. HW/5/16-18HEXNUT Nut, Hex 20

-6. HW/5/16/18x1.25 . Bolt, Hex 12

-7. HW/5/16-FLT . Washer, Flat 20

-8. HW/5/16-SPLIT . Washer, Split 20

-9. HW/5/16-18x2.25 . Bolt, Hex 8

- Item Not Illustrated.

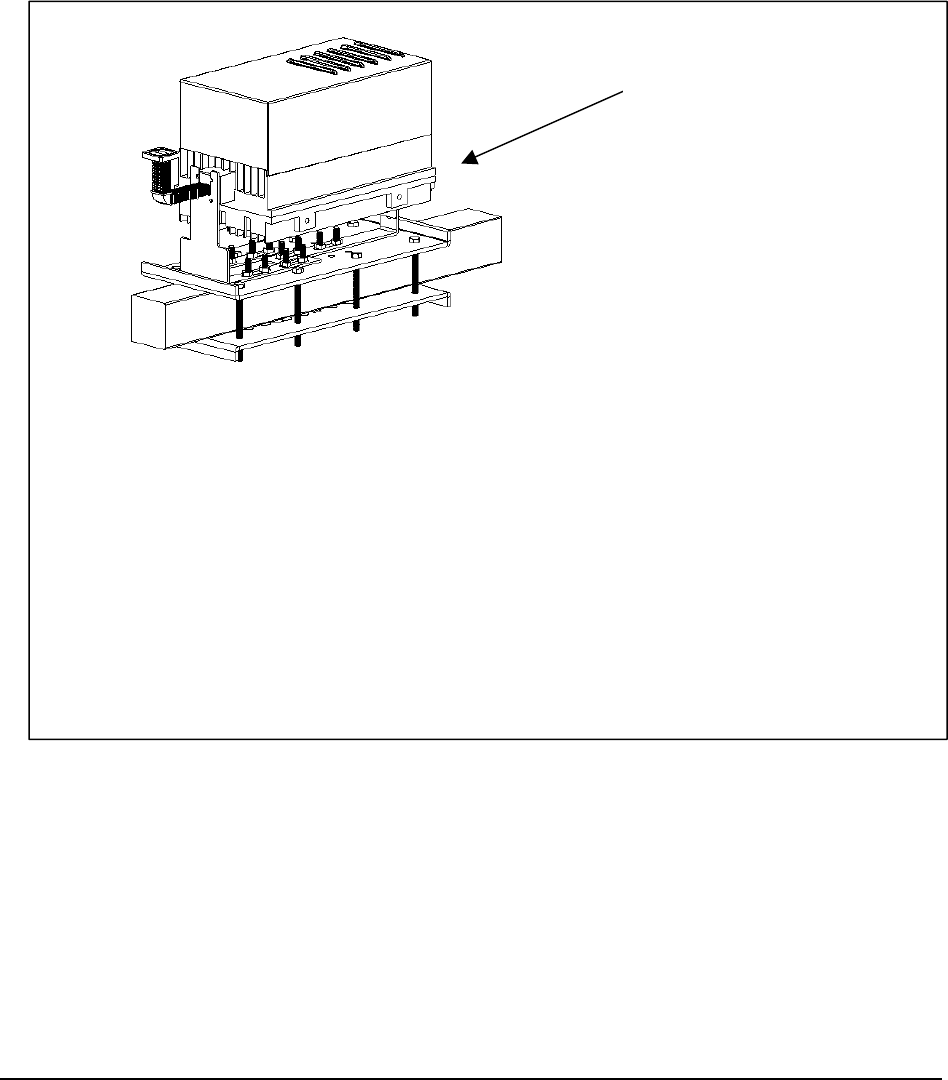

Figure 3-5. Ku-BUC Spar Mount, Typical Terrasat

1
