Ku-Band Satellite Transceiver Revision 9

Operation MN/KST2000AB.IOM

3–8

3.3 Redundant Junction Unit Description

Two KST-2000A/B systems combined with the RJU-2000 form a highly flexible 1:1 re-

dundant transceiver system. There are three modes of operation supported requiring re-

mote intervention only in the case of initial setup.

Figure 3-3 shows the front panel of the

RJU-2000.

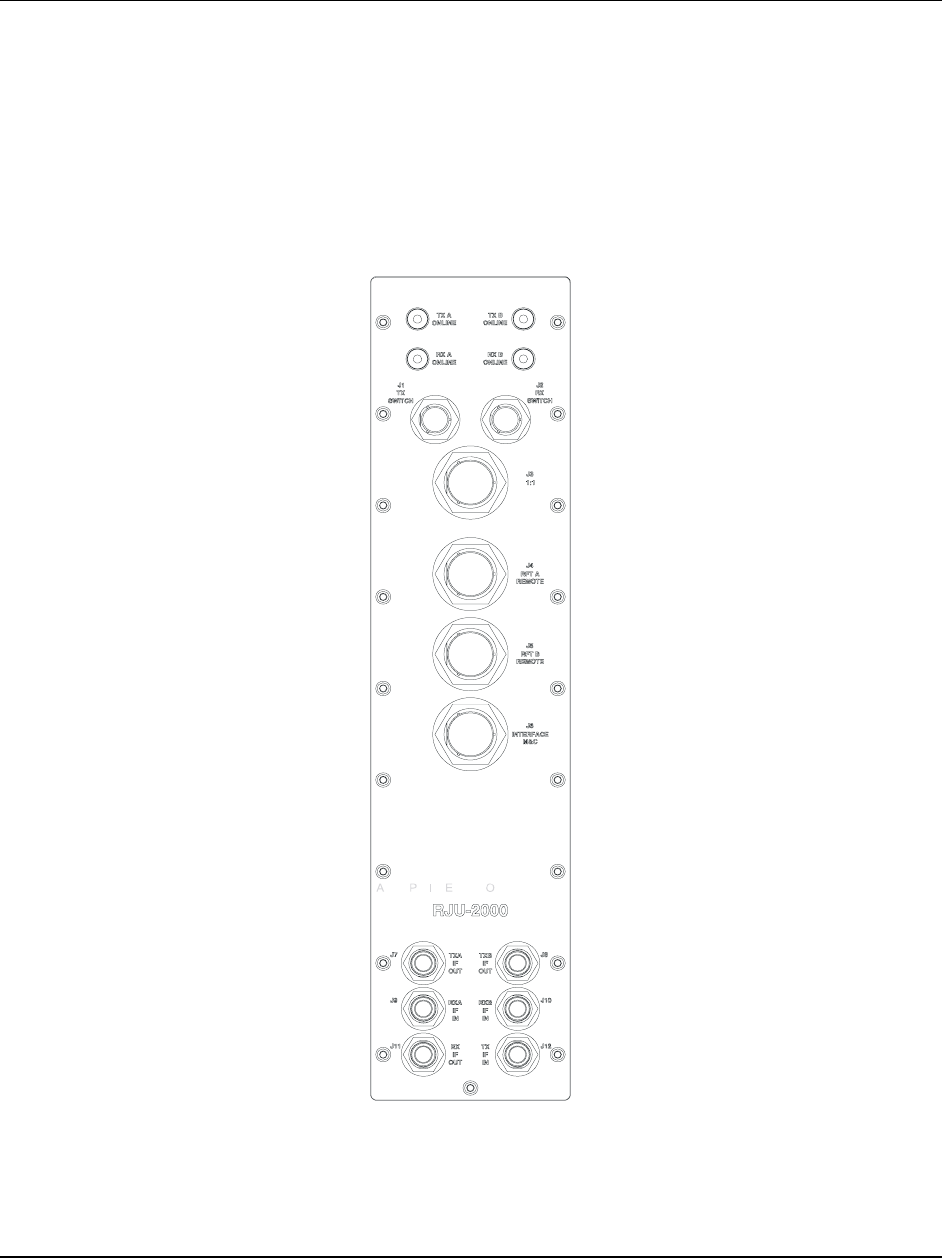

Figure 3-3. RJU-2000 Front Panel
