MBT-4000B Multi-band Transceiver System Revision 1

Updating Firmware MN/MBT4000B.IOM

5–7

G. Download the archive file to the temporary folder.

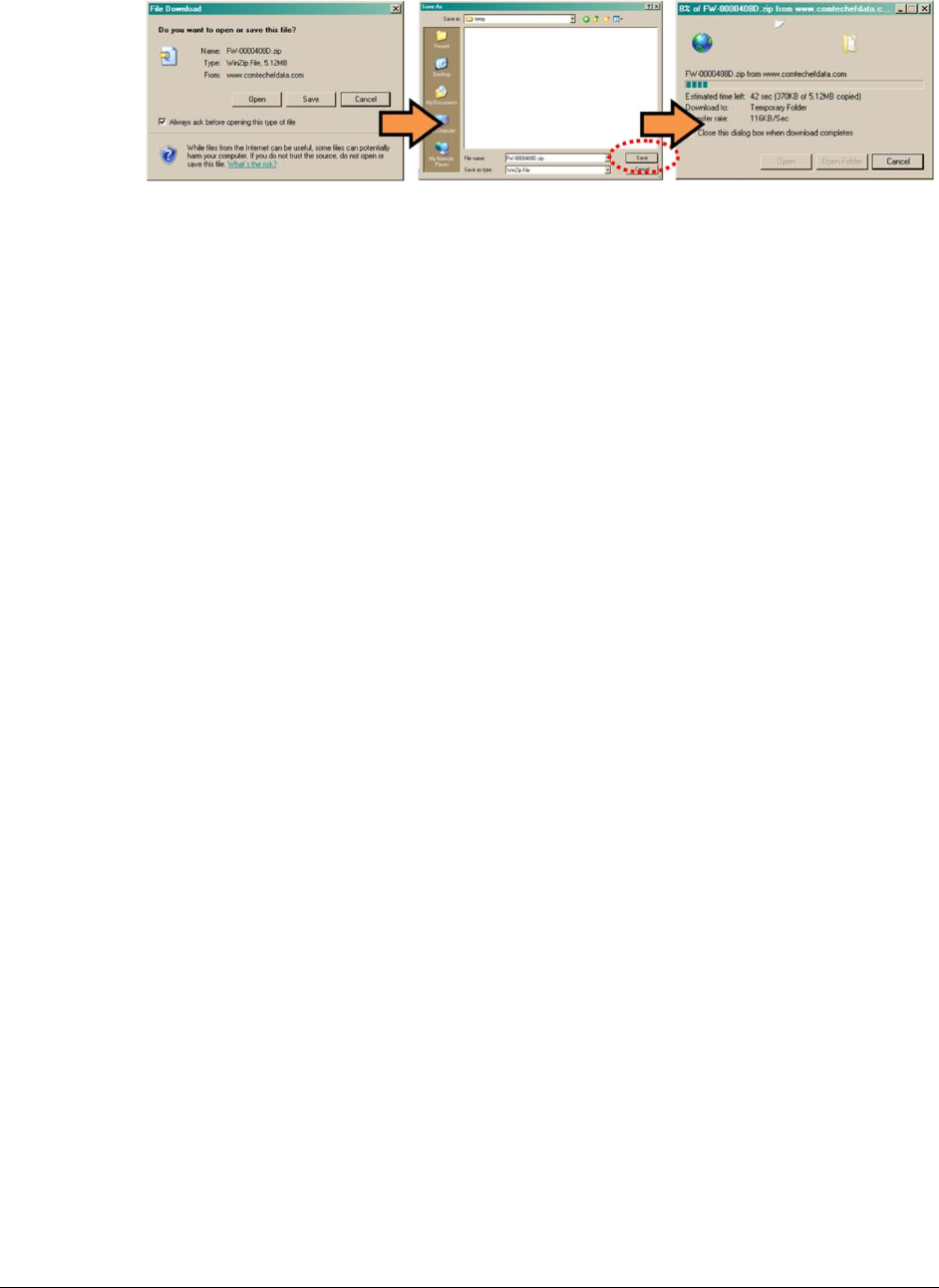

• Once the EXE or ZIP hyperlink is selected the ‘File Download’ window opens and

prompts selection of [Open] or [Save]:

o Click [Open] to turn over file extraction to the user-supplied utility program. Be

sure to extract the firmware files to the ‘temp’ folder created earlier.

o Click [Save] to open the ‘Save As’ window. Be sure to select and [Save] the

archive *.exe or *.zip file to the ‘temp’ folder created earlier.

Otherwise, click [Cancel] to quit and exit the file download process.

2. Next, extract the firmware files from the archive file.

• (If not already done with File Download > [Open]) Extract the firmware files from the

downloaded *.exe or *.zip archive file with the user-supplied utility program:

o Double-click on the archive file name, and then follow the prompts provided by the

user-supplied utility program. Extract, at a minimum, four files:

 FW12357X.CCC – The Firmware Bulk image file (where ‘x’ denotes the revision

letter).

 MBT4000B_ReleaseNotes_v#-#-#.pdf – The Firmware Release Notes PDF file

(where ‘#-#-#’ denotes the firmware version number).

 FLSHCSAT.EXE – CEFD Flash Upload Utility Program.

 CCCflash.hlp – FLSHCSAT Help File.

3. Confirm availability of the firmware files in the temporary folder.

There are several ways the user may view the contents of the temporary folder on a

Windows-based PC:

A. From the Windows Desktop:

• Double-left-click the ‘temp’ folder saved to the Windows Desktop.
