MBT-4000 Multi-Band Transceiver System Revision 4

Flash Upgrading MN/MBT4000.IOM

5–6

11

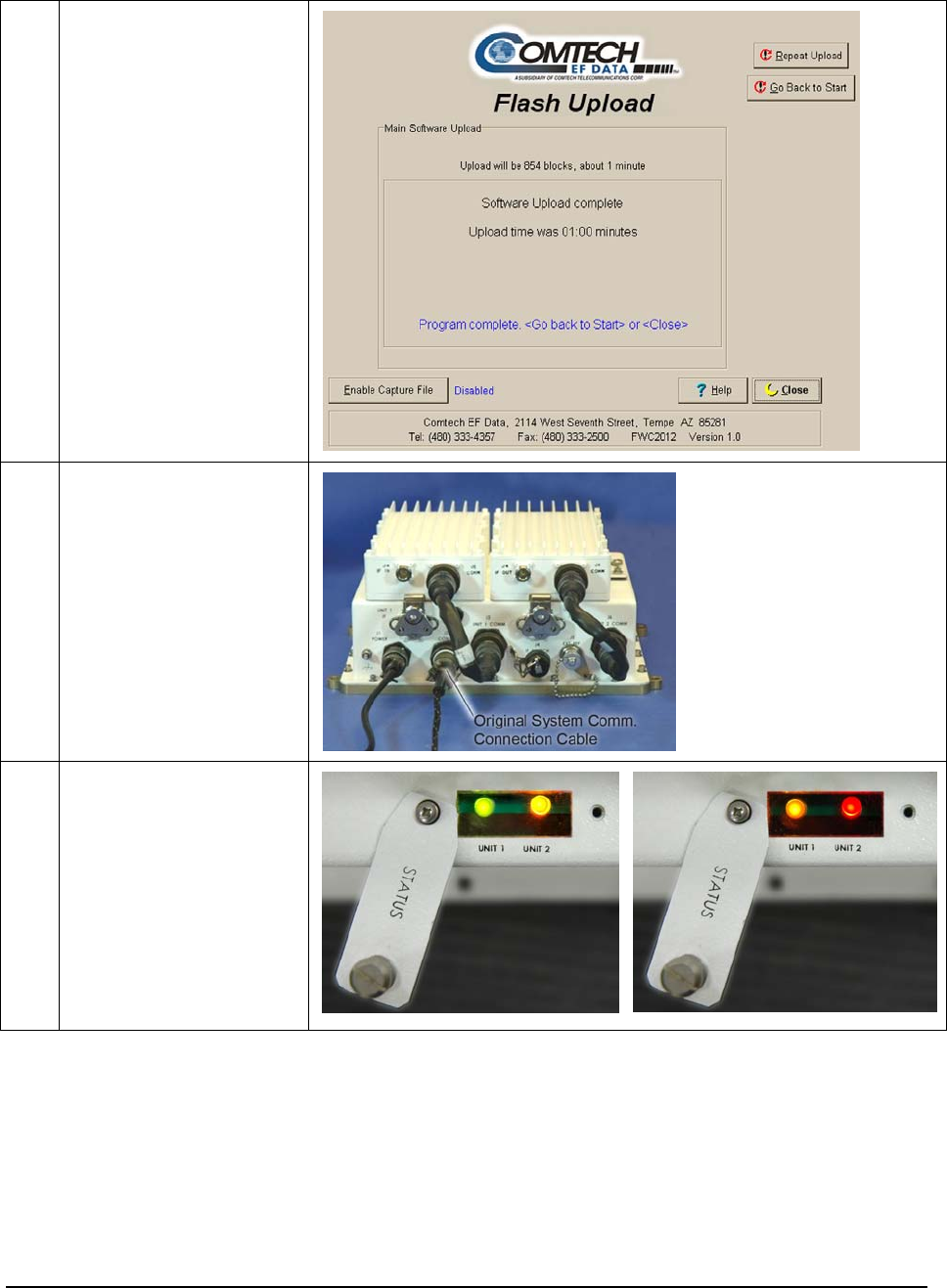

Upon successful completion

of the upload, the user may

click on ‘Go Back to Start’

(if, for example, more than

one MBT-4000 system

requires upgrade), or ‘Close’

(to exit the FLSHCSAT

program).

12

If needed, disconnect the

System Programming Cable

(CEFD P/N CA/WR12243-1)

and reconnect the original

System Communications

Connection Cable.

13

The LEDs on the MBT-4000

Base Unit will illuminate

GREEN (unmuted) or

YELLOW (muted) to indicate

the current status of the Unit

1 and Unit 2 modules.

(Note: If either LED

illuminates RED, refer to

Appendix B. FAULTS/EVENTS

for further information.)

The upgrade process has been successfully completed.
