Ku-Band Satellite Transceiver Revision 9
Installation MN/KST2000AB.IOM
2–8

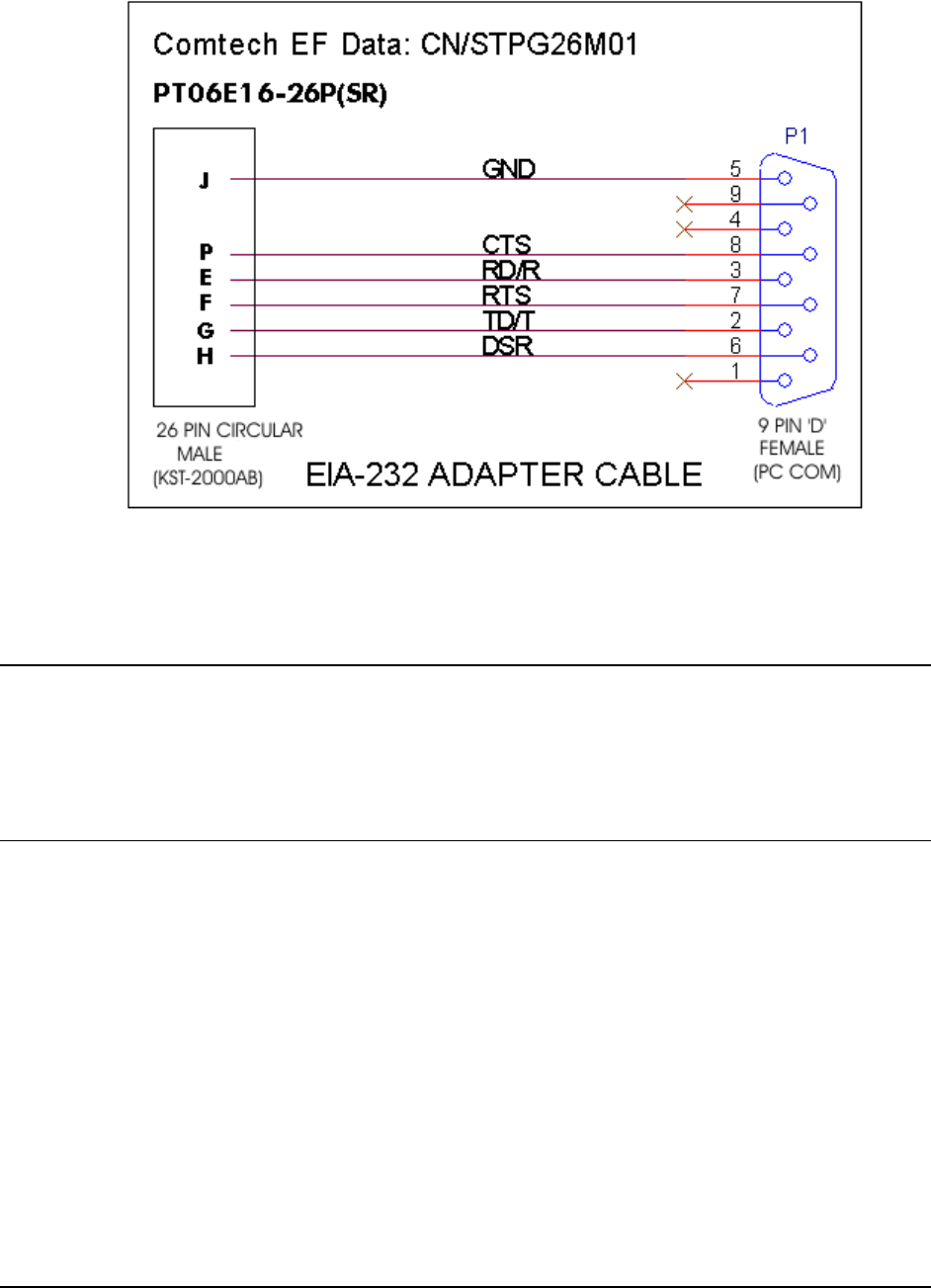

Figure 2-3. Serial (EIA-232) Adapter Cable Wiring Diagram
2.4.1.4 IF IN Connector (J3)
The IF IN connector (J3) is a Type N, female connector used to connect the IF at 70 MHz
(140 MHz optional) at –25 to – 45 dBm from the modem to the converter unit. Either
50Ω or 75Ω cables may be used to connect to J3.
2.4.1.5 IF OUT Connector (J4)
The IF OUT connector (J4) is a Type N, female connector used to connect the IF at
70 MHz (140 MHz optional) from the converter unit to the modem. Either 50Ω or 75Ω
cables may be used to connect to J4.
