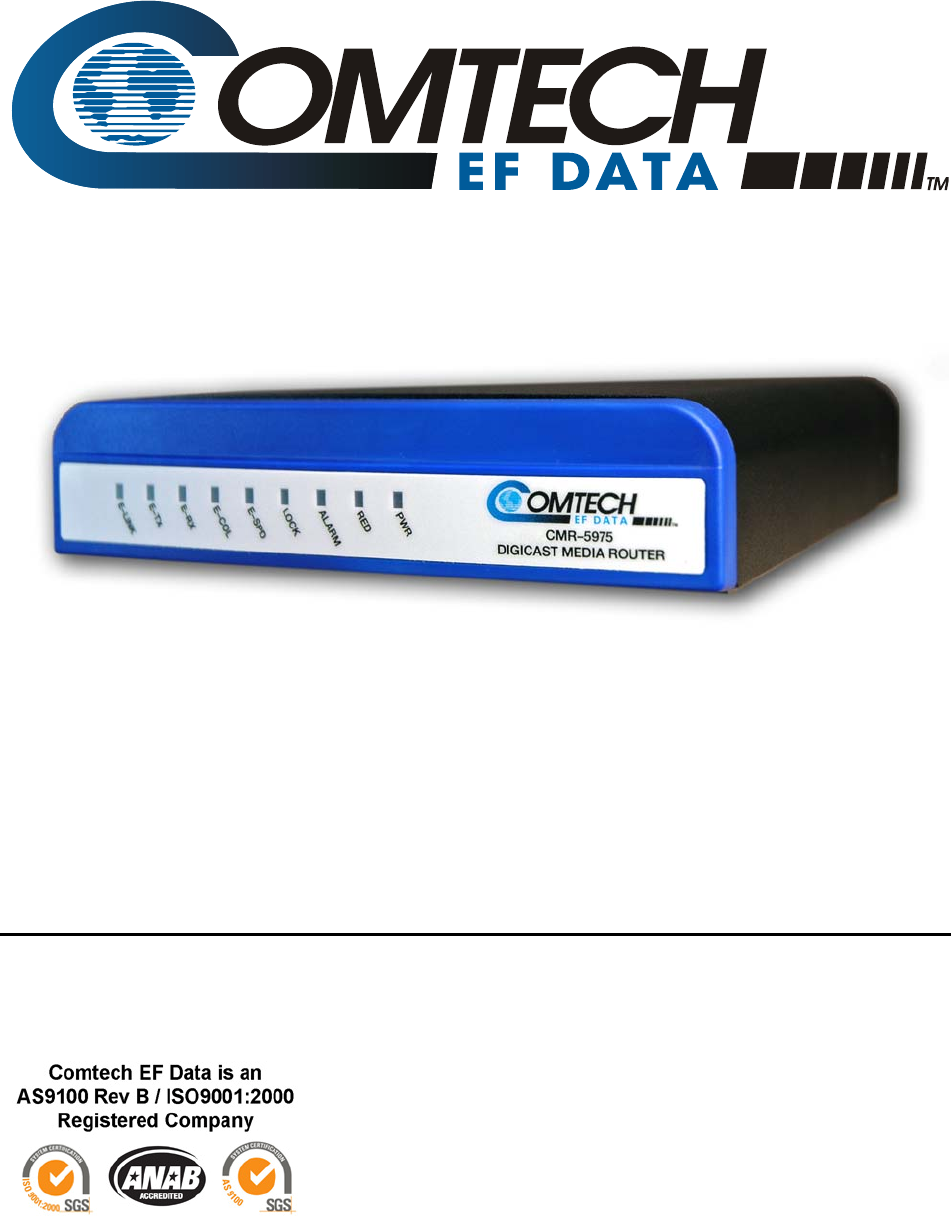

Comtech EF Data CMR-5975 Dokumentacja

Copyright © Comtech EF Data, 2008. All rights reserved. Printed in the USA. Comtech EF Data, 2114 West 7th Street, Tempe, Arizona 85281 USA, (480) 333

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Table of Contents MN-CMR5975-IOM vi Figure 4-36. Detailed Tuner MPEG TS Stats ...

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Setting Up a Digicast Digital Satellite Receiver MN-CMR5975-IOM D–2 The following imag

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Setting Up a Digicast Digital Satellite Receiver MN-CMR5975-IOM D–3 D.2 Required Info

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Setting Up a Digicast Digital Satellite Receiver MN-CMR5975-IOM D–4 D.3 Verify Freque

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Setting Up a Digicast Digital Satellite Receiver MN-CMR5975-IOM D–5 D.4 Configure the

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Setting Up a Digicast Digital Satellite Receiver MN-CMR5975-IOM D–6 Terminal Interface

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Setting Up a Digicast Digital Satellite Receiver MN-CMR5975-IOM D–7 D.5 Important Ter

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Setting Up a Digicast Digital Satellite Receiver MN-CMR5975-IOM D–8 Polarization The

E–1 Appendix E. Configuring and Controlling the Digicast CMR-5975 Media Router with SNMP In general, to configure the Digicast CMR-5975 for web-base

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Configuring and Controlling the Digicast CMR‑ 5975 Media Router with SNMP MN-CMR5975-I

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Configuring and Controlling the Digicast CMR‑ 5975 Media Router with SNMP MN-CMR5975-I

viiPreface Customer Support Contact the Comtech EF Data Customer Support Department for: • Product support or training • Reporting comments or su

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Configuring and Controlling the Digicast CMR‑ 5975 Media Router with SNMP MN-CMR5975-I

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Configuring and Controlling the Digicast CMR‑ 5975 Media Router with SNMP MN-CMR5975-I

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Configuring and Controlling the Digicast CMR‑ 5975 Media Router with SNMP MN-CMR5975-I

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Configuring and Controlling the Digicast CMR‑ 5975 Media Router with SNMP MN-CMR5975-I

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Configuring and Controlling the Digicast CMR‑ 5975 Media Router with SNMP MN-CMR5975-I

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Configuring and Controlling the Digicast CMR‑ 5975 Media Router with SNMP MN-CMR5975-I

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Configuring and Controlling the Digicast CMR‑ 5975 Media Router with SNMP MN-CMR5975-I

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Configuring and Controlling the Digicast CMR‑ 5975 Media Router with SNMP MN-CMR5975-I

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Configuring and Controlling the Digicast CMR‑ 5975 Media Router with SNMP MN-CMR5975-I

F–1 Appendix F. DVB-S/S2 BER Performance at Quasi-Error Free (QEF) The Forward Error Correction (FEC) technique used in Digicast receivers complies w

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Preface MN-CMR5975-IOM viii About this Manual This manual provides installation and op

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 DVB-S/S2 BER Performance at Quasi-Error Free (QEF) MN-CMR5975-IOM F–2 Recorded Data D

METRIC CONVERSIONS Units of Length Unit Centimeter Inch Foot Yard Mile Meter Kilometer Millimeter 1 centimeter — 0.3937 0.03281

2114 WEST 7TH STREET TEMPE ARIZONA 85281 USA 480 • 333 • 2200 PHONE 480 • 333 • 2161 FAX

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Preface MN-CMR5975-IOM ix Metric Conversion Metric conversion information is located o

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Preface MN-CMR5975-IOM x Safety Compliance EN60950 Compliance Applicable testing is ro

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Preface MN-CMR5975-IOM xi Warranty Policy Comtech EF Data products are warranted again

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Preface MN-CMR5975-IOM xii The warranty excludes any responsibility by Comtech EF Data

1–1 Chapter 1. INTRODUCTION Figure 1-1. Digicast Media Router S2 Receiver – Front Panel 1.1 Introduction The Comtech EF Data (CEFD) Digica

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Introduction MN-CMR5975-IOM 1–2 Figure 1-2. Digicast Media Router S2 Receiver – Rear

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Introduction MN-CMR5975-IOM 1–3 1.3 Performance The MR-S2 provides the following perf

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Introduction MN-CMR5975-IOM 1–4 1.5 Specifications Table 1-1. Digicast Media Router S

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Introduction MN-CMR5975-IOM 1–5 1.6 Terminology The following table defines the acro

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Introduction MN-CMR5975-IOM 1–6 Acronym Definition PSI Program Specific Information

Chapter 2. INSTALLATION AND INITIAL CONFIGURATION 2.1 Major Assembly The CEFD MR-S2 is available in a standalone configuration. Table 2-1 lists the c

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Installation & Initial Configuration MN-CMR5975-IOM 2-2 • Contact Comtech EF Dat

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Installation & Initial Configuration MN-CMR5975-IOM 2-3 2.4 Initial Configuration

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Installation & Initial Configuration MN-CMR5975-IOM 2-4 Notes:

3-1 Chapter 3. INTERFACE PINOUTS 3.1 Pinout Overview The rear panel interface (Figure 3-1) provides all necessary external connections between the MR

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Interface Pinouts MN-CMR5975-IOM 3-23.3 RJ-45 Ethernet 3.4 RJ-12 Redunda

4-1 Chapter 4. DEVICE MANAGEMENT VIA USER INTERFACES 4.1 Introduction Management of the MR-S2 is simple and intuitive. There are a variety of ways

AGILE DOC ID ER-CMR5975-EA3 THIS DOCUMENT IS NOT SUBJECT TO REVISION/UPDATE! AGILE C08557 1 Errata A Comtech EF Data Documentation Update Subj

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-2 Figure 4-1. Connecting to

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-3 Figure 4-3. MR-S2 Home page

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-4 4.2.1 Administrative Confi

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-5 The MR-S2 Administrative Con

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-6 4.2.2 SNMP Configuration Fi

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-7 4.2.3 Vload Configuration V

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-8 4.2.4 Syslog Configuration

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-9 4.2.5 Redundancy Configurat

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-10 4.2.6 Network Configuratio

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-11 Default Gateway The Default

AGILE DOC ID ER-CMR5975-EA3 THIS DOCUMENT IS NOT SUBJECT TO REVISION/UPDATE! AGILE C08557 2

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-12 4.2.7 Network ARP Figure

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-13 4.2.8 IGMP Configuration

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-14 4.2.9 Unicast Routing Conf

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-15 Satellite MAC (MPE/IP) The

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-16 IP (DVB-TS) If DVB-TS Mod

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-17 4.2.11 Tuner MPEG TS Route

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-18 Select the “Service List” b

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-19 4.2.12 Tuner Configuration

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-20 Downlink Frequency The act

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-21 Polarity The configured pol

i Table of Contents PREFACE...

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-22 4.2.13 Tuner Statistics F

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-23 Statistical reports are ava

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-24 Power Estimate Displays the

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-25 Figure 4-18. Menu Hierarch

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-26 4.3.1 Login Figure 4-19.

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-27 4.3.2 Main Menu Figure 4-2

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-28 4.3.3 Redundancy Menu Figu

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-29 4.3.4 Administration Menu

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-30 Contact information of the

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-31 4.3.4.1 Vload Configuratio

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Table of Contents MN-CMR5975-IOM ii CHAPTER3. INTERFACEPINOUTS...

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-32 4.3.4.2 Port Number Config

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-33 4.3.4.3 Syslog Configuratio

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-34 4.3.5 IGMP Configuration M

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-35 4.3.6 Stats Menu Figure 4

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-36 Figure 4-28. Stats Menu Hi

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-37 4.3.6.1 DMA Stats Menu Fig

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-38 4.3.6.2 Ethernet Stats Menu

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-39 4.3.6.3 Tuner Stats Menu F

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-40 4.3.6.3.1 Tuner MPE/IP Sta

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-41 4.3.6.3.1.1 Detailed Tuner

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Table of Contents MN-CMR5975-IOM iii APPENDIXA. SOFTWAREUPGRADE...

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-42 4.3.6.3.1.2 Detailed Tuner

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-43 4.3.6.3.2 Tuner MPEG TS St

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-44 4.3.6.3.2.1 Detailed Tuner

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-45 Figure 4-38. Detailed Tuner

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-46 4.3.7 Network Configuratio

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-47 4.3.8 Unicast Routing Conf

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-48 4.3.9 Tuner Menu This menu

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-49 4.3.9.1 Tuner Configuratio

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-50 Example 2: LO = 10,600 MHz

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-51 LNB 22 KHz Tone Enables or

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Table of Contents MN-CMR5975-IOM iv E.5.1 PrivateMIBOIDsonDigicastProducts...

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-52 4.3.9.2 Tuner MPE/IP Confi

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-53 4.3.9.3 Tuner MPEG TS Conf

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-54 4.4 Telnet Interface Telne

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-55 Figure 4-46. Mai

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-56 To modify code via Telnet:

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-57 4.6 Simple Network Managem

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Device Management via User Interfaces MN-CMR5975-IOM 4-58 4.6.1 SNMP Traps The CMR-5

A–1 Appendix A. SOFTWARE UPGRADE A.1 Introduction The MR-S2 is enabled to receive an upgrade via Trivial File Transfer Protocol (TFTP) transmission.

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Software Upgrade MN-CMR5975-IOM A–2 IMPORTANT A.2 Web Interface Access the Administra

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Software Upgrade MN-CMR5975-IOM A–3 Figure A-1. TFTP Downloa

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Table of Contents MN-CMR5975-IOM v Figures Figure 1-1. Digicast Media Router S2 Recei

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Software Upgrade MN-CMR5975-IOM A–4 A.3 Telnet or Terminal Interface Access the Admin

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Software Upgrade MN-CMR5975-IOM A–5 Figure A-3. TFTP Download Complete (via Termi

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 Software Upgrade MN-CMR5975-IOM A–6 Notes:

B–1 Appendix B. IP ROUTING SUPPORT B.1 Introduction The MR-S2 provides state-of-the-art L-Band DVB-S and DVB-S2 IP and transport stream delivery bas

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 IP Routing Support MN-CMR5975-IOM B–2 B.2.1 Unicast Routing Unicast routing provides p

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 IP Routing Support MN-CMR5975-IOM B–3 Figure B-1. Multicast Mapping (IP to MA

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 IP Routing Support MN-CMR5975-IOM B–4 Notes:

C–1 Appendix C. SYSTEM LOG CONFIGURATION C.1 Introduction The MR-S2 supports a feature known as system logging, more commonly called Syslog. This

Digicast Media Router S2 Receiver CMR-5975 (MR-S2) Revision 3 System Log Configuration MN-CMR5975-IOM C–2 Looking in the top of file /etc/init.d/sys

D–1 Appendix D. SETTING UP A DIGICAST DIGITAL SATELLITE RECEIVER D.1 Introduction Setting up a digital satellite receiver for the delivery of IP or
