Appendix D - Network Migration D-17
Firmware Upgrade
Figure D-22

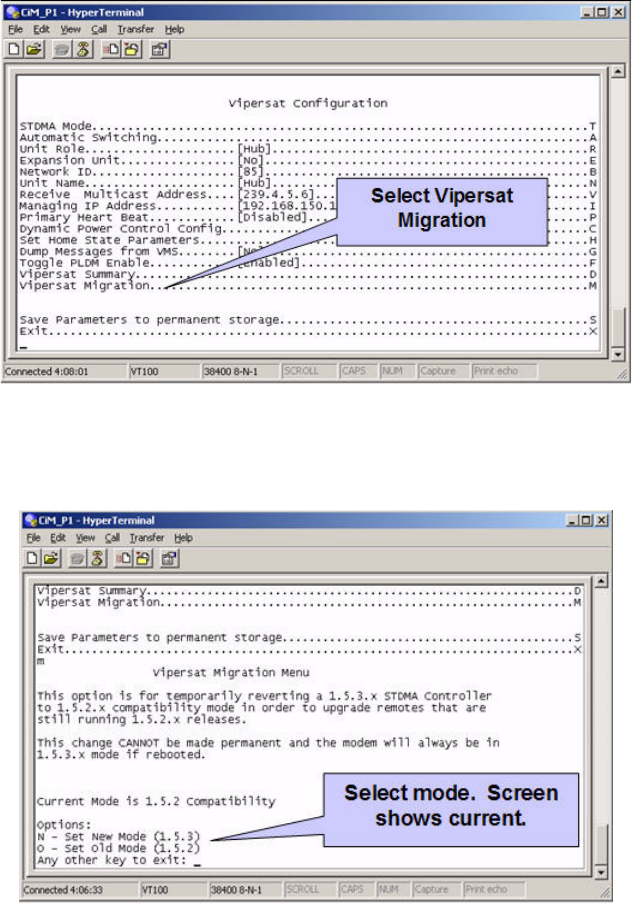

Vipersat Configuration screen
The Vipersat Migration Parameter "M" is available only on Hub non-expansion
units.
Figure D-23
Vipersat Migration prompt
Select O to set the old framing mode to v1.5.2 or earlier. This parameter must
be set in both outbound and inbound units to properly transmit/receive to/from
Remote units.
