CDM-800 Gateway Router Revision 1

Rear Panel Connections MN-CDM800

3–14

3.3.3.2 DC Operation – Replacing Fuses



DISCONNECTTHEPOWERSUPPLYBEFOREPROCEEDING!

Thefuses are containedwithin individualscrew‐inreceptacleslocatedbelowtheterminal blocks

(Figure3‐10).



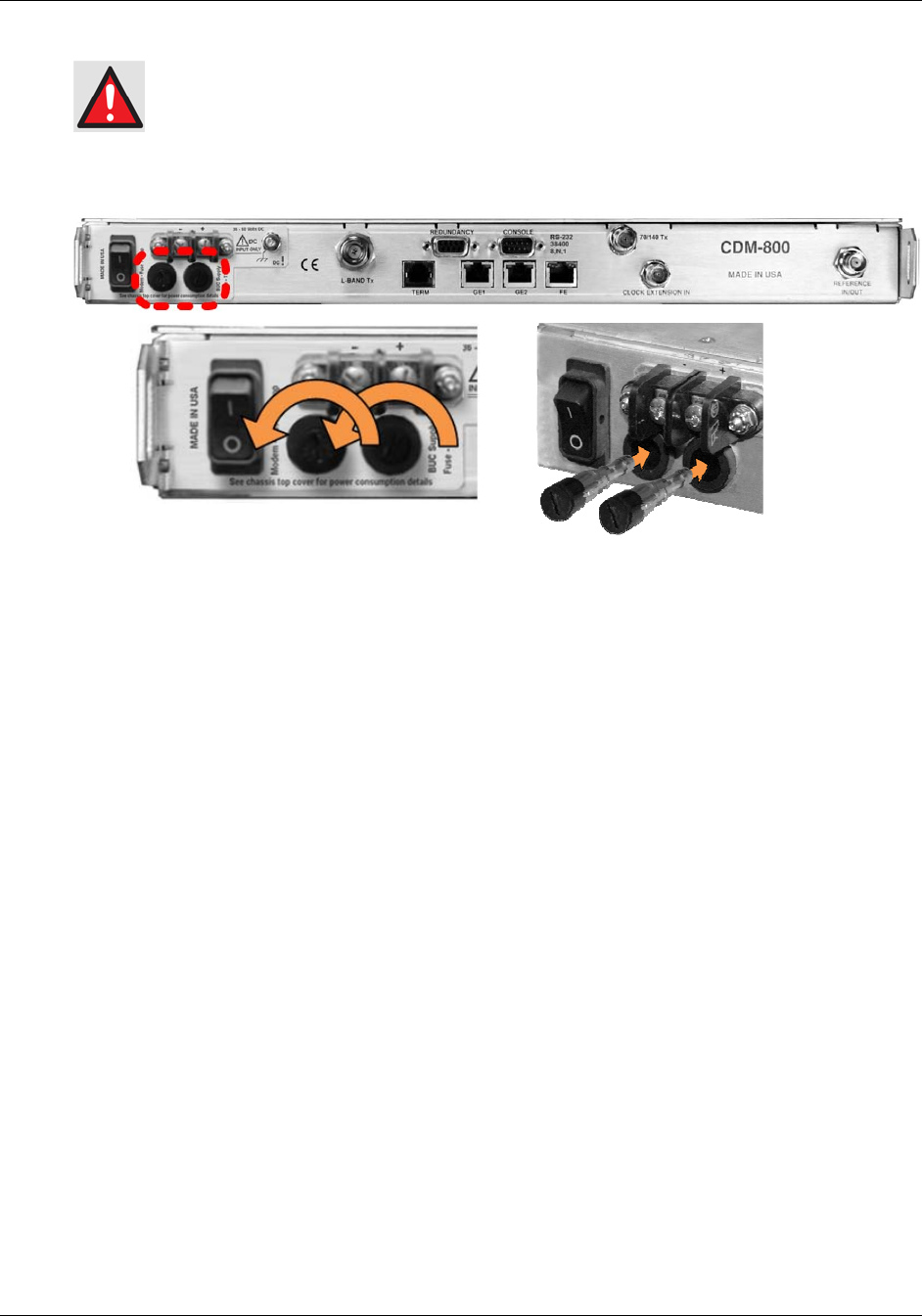

Figure 3-10. Replacing CDM-800

DC Fuses



Tore

placethefuses:



• First, unscrew either fuse holder from its receptacle. Then, remove and replace the

fuse:



o UseT3A(3Amp)fusesforstandardoperation



o UseT5A(5Amp)fuseswhenaBlockUpconverter(BUC)isinstalled.



•

Screwei

therfuse

holderbackintoitsreceptacle.
