FAST Activation Procedure Revision 2
CDM-760 Advanced High-Speed Trunking Modem MN-CDM760
5–5
4. Enter the FAST Access Code(s):

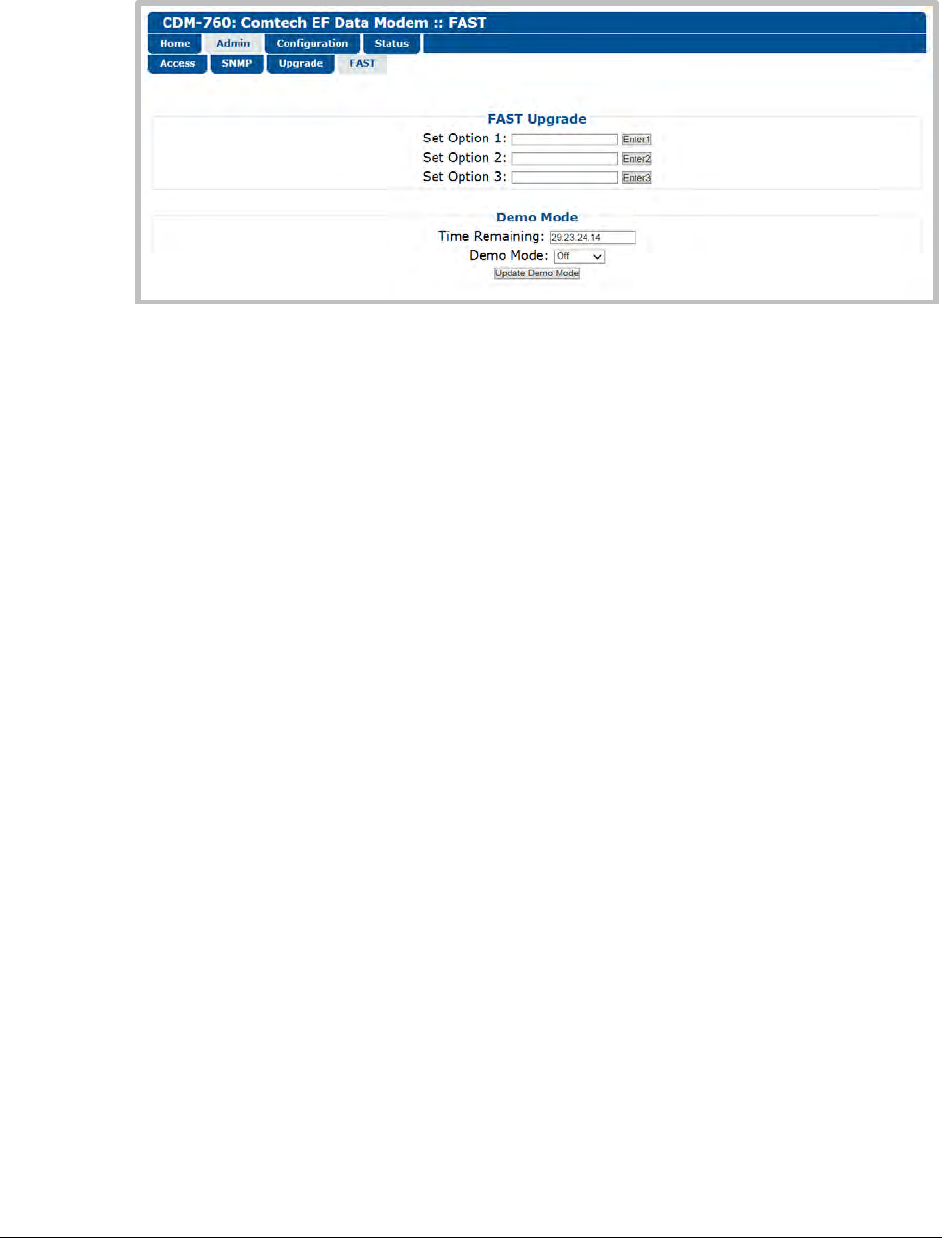

a) Log in to the CDM-760 HTTP Interface, and open the ‘Admin | FAST’ page:
b) Enter the register-specific 20-digit FAST Access Code(s) carefully into the associated text
field(s) (“Option” as used here is the same as “Register”).
The modem responds with “Configured Successfully” if the FAST upgrade is accepted;
the modem then resets to its newly-incorporated default configuration.
However, if an invalid code is entered, the message “Invalid!” will display in the text
field. Repeat the FAST Access Code entry procedure. Should the code entry error
persist, contact Comtech EF Data Product Support for further assistance.
