Chapter 1. Introduction

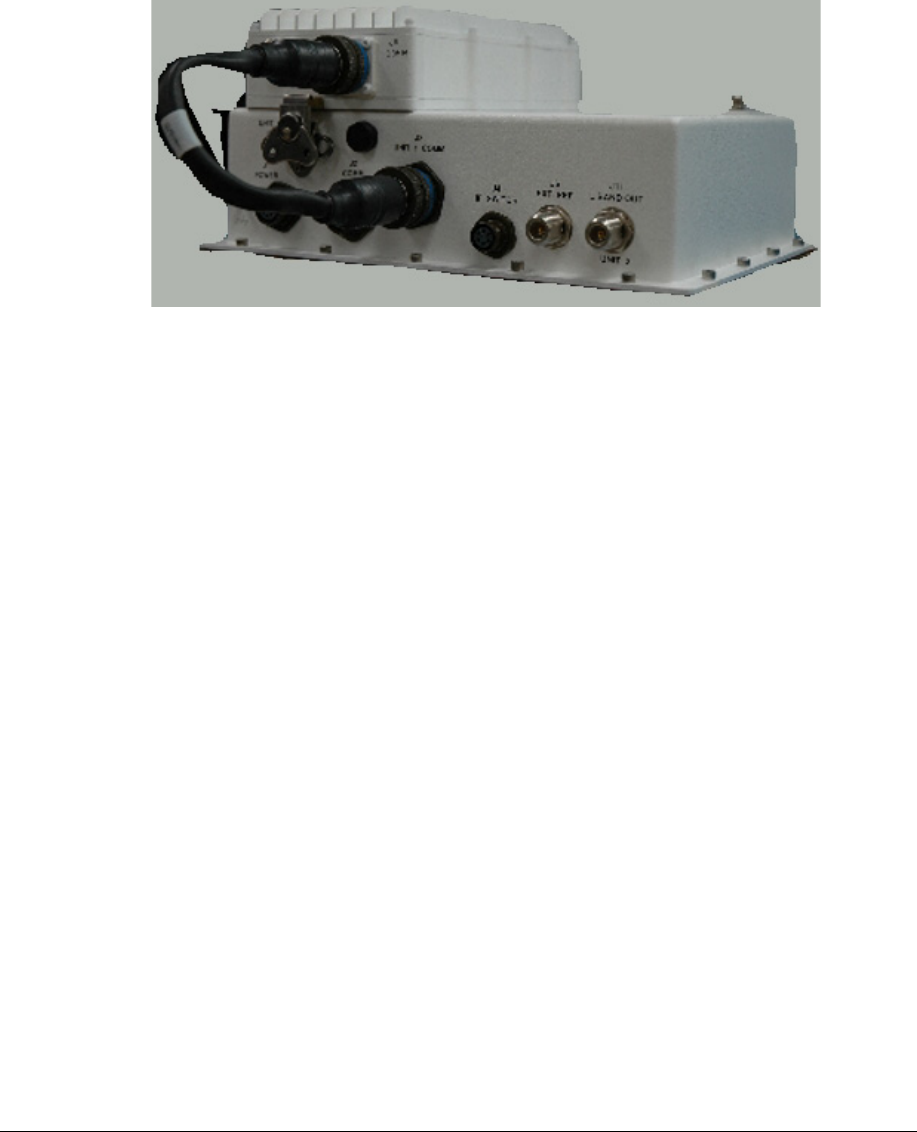

Figure 1-1. MBT-4000B Outdoor Multi-Band RF Transceiver

1.1 OVERVIEW

This manual provides instructions on the installation, operation and maintenance of the

MBT-4000B, Multi-Band Transceiver System (MBT-4000B), manufactured by Comtech

EF Data (CEFD). Specifications for this model are included in this section.

1.2 FUNCTIONAL DESCRIPTION

The MBT-4000B is designed to perform the following functions:

• LNB support for C-, X-, or Ku- RF to L-Band down conversion

• L-Band to C-, X-, or Ku- RF up conversion

• RF Band switching in minimal time without requiring tools

• Easy expansion for providing a redundant system or other frequency bands

• System status verification via LEDs located behind a removable cover
